102

DQC116

877.963.4966 •

dixonvalve.com

HT-Series Hydraulic Couplings

Interchange Data:

Interchangeable to ISO16028

Parker FEM-Series, Snap-Tite 74-Series, Hansen FF,

Aeroquip/Eaton FD89, Stucchi FIRG/Series 'A',

Faster FFN/FFI/2FFN/2FFI, Safeway FF49-Series

Materials:

Machined components are manufactured using solid steel or

316 stainless steel bar stock.

Stainless steel balls, retaining rings, and springs maximize

corrosion resistance and extend service life.

Steel componentry is plated using ROHS Compliant Zinc

Nickel for superior corrosion resistance.

Steel coupler sleeves are hardened to resist deformation

and maximize service life.

Steel nipples are hardened to provide resistance to

brinneling during impulse service.

⅜", ½", and ¾" nipples have molded Polyurethane valve

seals,with a temperature range of

-65°F

to

+212°F

(

-54°C

to

+100°C

).

¼", ⅝" and 1" to 2" nipples have Nitrile-energized PTFE

valve seals, with a temperature range of

-40°F

to

+250°F

(

-40°C

to

+121°C

).

Couplers have a polyurethane valve stem O-ring, with a

temperature range of

-65°F

to

+212°F

(

-54°C

to

+100°C

).

Ancillary coupler and nipple seals are Nitrile (Buna-N),

temperature range of

-40°F

to

+250°F

(

-40°C

to

+121°C

).

PTFE or TPC-ET Anti-Extrusion ring protects main coupling

valve seal from dynamic impulse pressure damage.

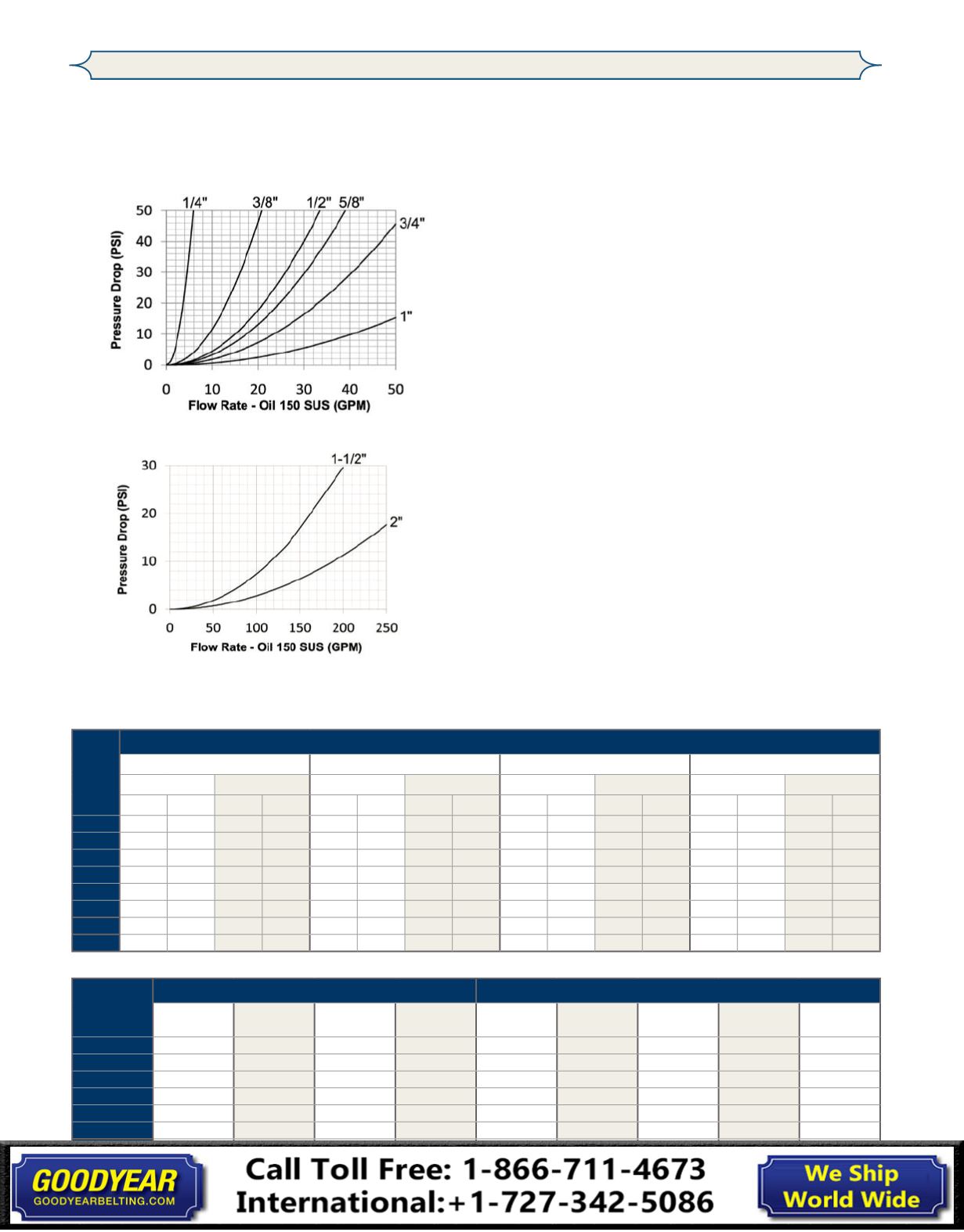

Seal Components:

Body

Size

HT-Series ISO16028 Flushface

Steel Coupler/Plug Coupled 316SS Coupler/Plug Coupled Steel Coupler Uncoupled

Steel Plug Uncoupled

Max. Working Burst

Max. Working Burst

Max. Working Burst

Max. Working Burst

PSI

Bar

PSI

Bar

PSI

Bar

PSI

Bar

PSI

Bar

PSI

Bar

PSI

Bar

PSI

Bar

1/4"

5000 345 20,000 1,379 -

-

-

-

5000 345 20,000 1379 5000 345 20,000 1,379

3/8"

5000 345 20,000 1,379 3500 241 17,500 1,207 5000 345 20,000 1379 5000 345 20,000 1,379

1/2"

5000 345 20,000 1,379 3400 234 17,000 1,172 5000 345 20,000 1379 5000 345 20,000 1,379

5/8"

5000 345 20,000 1,379 2920 201 14,600 1,007 5000 345 20,000 1379 5000 345 20,000 1,379

3/4"

5000 345 20,000 1,379 2920 201 14,600 1,007 5000 345 20,000 1379 5000 345 20,000 1,379

1"

5000 345 20,000 1,379 2920 201 14,600 1,007 5000 345 20,000 1379 5000 345 20,000 1,379

1-1/2"

3000 207 12,000 828 -

-

-

-

3000 207 12,000 828 3000 207 12,000 828

2"

3000 207 12,000 828 -

-

-

-

3000 207 12,000 828 3000 207 12,000 828

Rated Pressure Chart:

Technical Specifications:

Body

Size

Interchange Standards

Functional Parameters

U.S.

Military

U.S.

Government

International

Standards

ANSI/NFPA

Standards

Locking Ball

Quantity

Air

Inclusion

Fluid

Loss

Vacuum

Inch HG

Flow

ΔP = 15 PSI

1/4"

-

-

ISO16028

-

12

n/a

0.010cc

N/R 3.2 GPM

3/8"

-

-

ISO16028 T3.20.15

12

n/a

0.010cc

N/R 11 GPM

1/2"

-

-

ISO16028

-

12

n/a

0.010cc

N/R 18 GPM

5/8"

-

-

ISO16028

-

12

n/a

0.020cc

N/R 21 GPM

3/4"

-

-

ISO16028

-

12

n/a

0.030cc

N/R 28 GPM

1"

-

-

ISO16028

-

12

n/a

0.030cc

N/R 50 GPM

1-1/2"

-

-

-

-

18

n/a

0.050cc

N/R 140 GPM

2"

-

-

-

-

20

n/a

0.070cc

N/R 225 GPM
