Replacement
Parts List
H-Type
Segmented Blade Precleaners

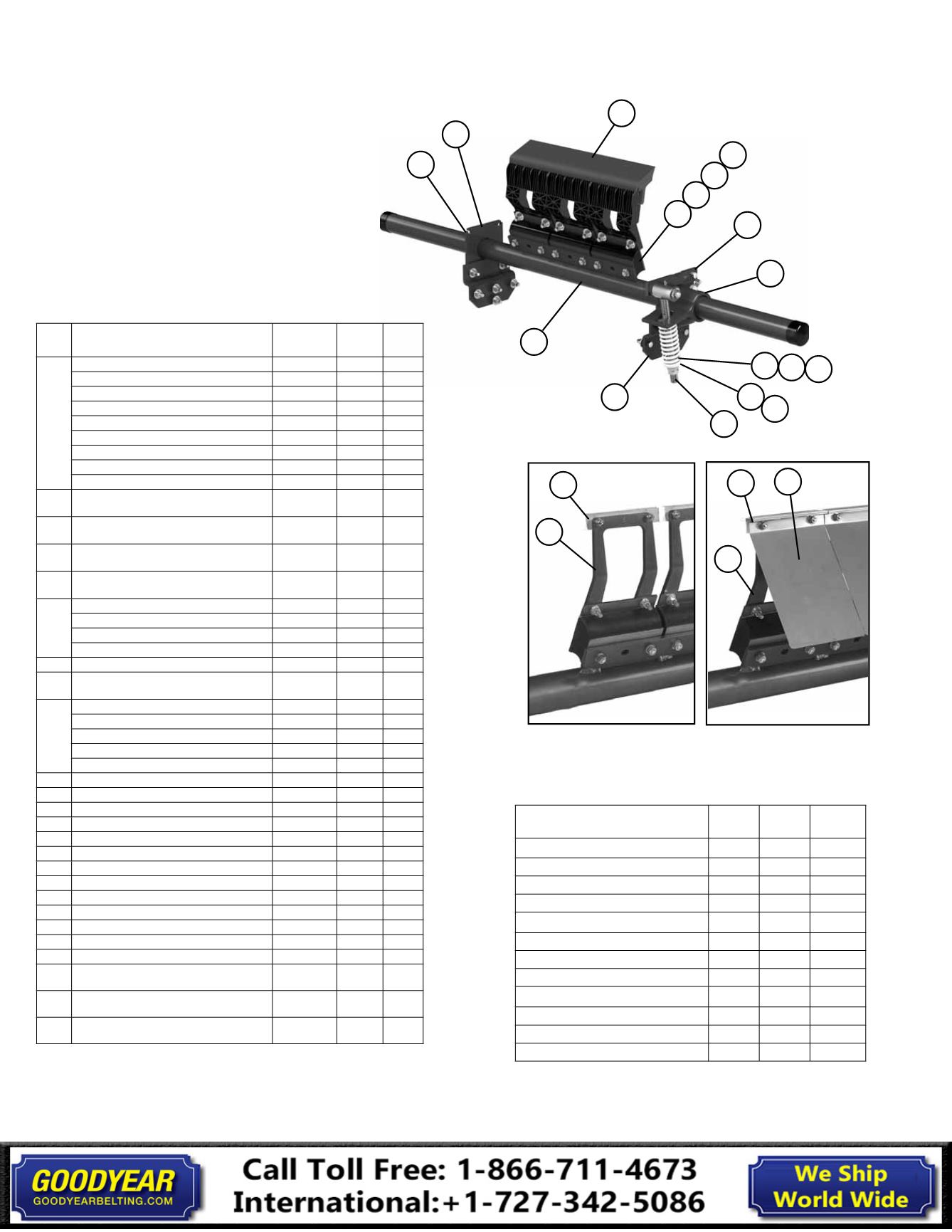

Replacement Parts
11
2a
2c
10
1
3
9
2b
2d
5
7 7a
8
8a
7b
6
(hidden)
12
3b 13
4
3a
4
Spring Tensioner Selection Chart
HVP
HV
HXF2
CLEANER TYPE AND SIZE
76074
QMT-P
76075
QMT-W
76402
QMT-S
HXF2
18" SS & S
X
18" M; 24"-36"; 42"-48" SS & S; 54" SS
X
42"-48" M & L; 54"-72" S, M, L
X
HV
18" SS, S, M; 24"-30" SS &S
X
24"-30" M; 36"-48", 54" S, M, L; 60" S
X
54" LL; 60" M, L, LL; 72"
X
HVP
18" S, M; 24"-30" S
X
24"-30" M; 36"-48"; 54" S, M, L; 60" S
X
54" LL; 60" M, L, LL; 72"
X
P R O D U C T H A N D B O O K
REF DESCRIPTION
ORDERING
NUMBER
ITEM
CODE
WT.
LBS.
1
18" (450mm) Pole
H78P18
76110 41.2
24" (600mm) Pole
H78P24
76111 46.5
30" (750mm) Pole
H78P30
76112 50.3
36" (900mm) Pole
H78P36
76113 55.7
42" (1050mm) Pole
H78P42
76114 61.1
48" (1200mm) Pole
H78P48
76115 64.9
54" (1350mm) Pole
H78P54
76116 70.3
60" (1500mm) Pole
H78P60
76117 99.8
72" (1800mm) Pole
H78P72
76118 113.0
2a H2 XF-Tip Cushion*
(for S, M, L HXF2-Tips; or S - LL Susp. Arms)
HXFC2
75902
4.0
2b H2 XF-Tip Cushion, Neoprene*
(oil resistant)
(for S, M, L HXF2-Tips; or S - LL Susp. Arms)
HXFC2SS 77044
4.0
2c H2 F-Tip Cushion*
(for SS HXF2 Tips; or SS Susp. Arms)
HFC2
75901
4.0
2d H2 F-Tip Cushion, Neoprene*
(oil resistant)
(for SS HXF2 Tips; or SS Susp. Arms)
HFC2SS 77043
4.0
3
HXF2-Tip Extra Small*
HXF2-SS 75979
3.0
HXF2-Tip Small*
HXF2-S 75980
3.4
HXF2-Tip Medium*
HXF2-M 75981
3.8
HXF2-Tip Large*
HXF2-L
75982
4.1
3a H V-Tip* (1 ea.)
HVT8-S/S 75419
1.0
3b H Protected V-Tip*
(1 ea.)
for vulcanized belts only) (for abusive wear)
HVPT
73631
2.7
4
H SS Suspension Arm*
HSA8SS 73047
0.5
H S Suspension Arm*
HSA8S
73048
1.0
H M Suspension Arm*
HSA8M 73049
1.5
H L Suspension Arm*
HSA8L
73063
2.0
H LL Suspension Arm*
HSA8LL
73064
2.5
5
Pole Lock Collar*
(1 ea.)
MSPPL
75816
1.9
6
Pivot Arm Kit*
(1 ea.)
QMTPAK 76096
4.3
7
Tension Spring - Purple
(1 ea.)
**
QMTS-P 75845
0.6
7a Tension Spring - White
(1 ea.)
**
PSTS-W 75898
1.7
7b Tension Spring - Silver
(1 ea.)
**
PSTS-S 75899
3.0
8
Bushing Kit - Purple
(2 ea.) (for Item 7)
QMTBK-P 76097
0.1
8a Bushing Kit - White
(2 ea.) (for Items 7a & 7b)
QMTBK-W 76098
0.2
9
Pivot Shaft Bracket Kit*
(1 ea.)
QMTPSBK 76099
4.3
10
Torque Arm Kit*
(1 ea.)
PSTA 75896 11.4
11
Mounting Plate Kit*
(2 ea.)
MSPMPK 75811
8.3
12
Offset Bracket Kit*
(1 ea.)
HOBK 76399 12.4
13
H SS Tip Shield
HSSTS 74771
0.5
-
H SS Cushion Shield
HSSCS 74772
0.6
-
QMT Spring Tensioner* - Purple
(incl. 1 ea. Items 6, 7, 8, 9, & 10)
QMT-P 76074 20.4
-
QMT Spring Tensioner* - White
(incl. 1 ea. Items 6, 7a, 8a, 9, & 10)
QMT-W 76075 21.8
-
QMT Spring Tensioner* - Silver
(incl. 1 ea. Items 6, 7b, 8a, 9, & 10)
VQMT-S 76402 23.9
*Hardware included
Note: All poles and tensioners are heavy-duty style.
Parts for old style H cleaners - See Page 130.
Lead time: 1 working day
