94

DQC116

877.963.4966 •

dixonvalve.com

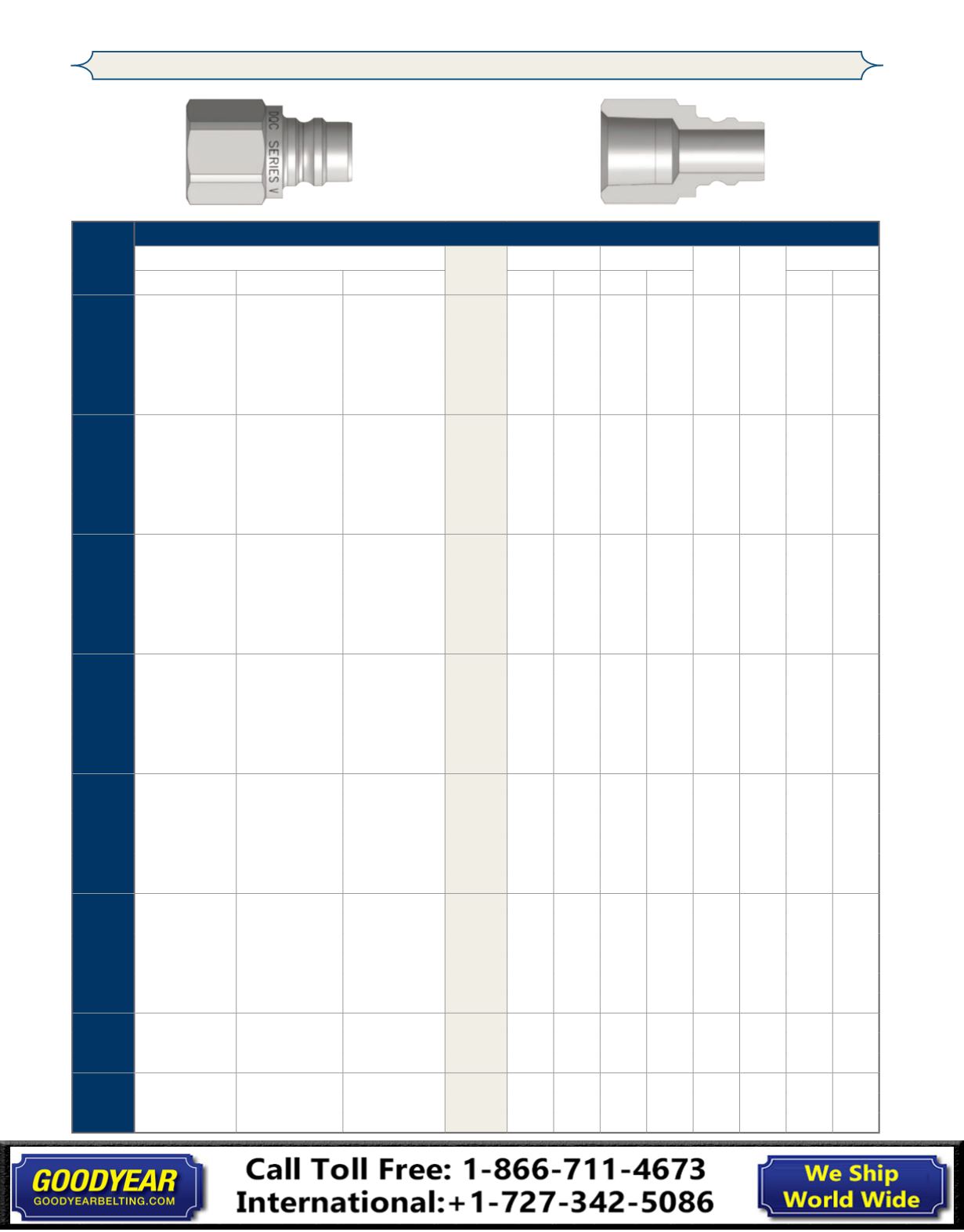

V-Series Hydraulic Couplings

Body

Size

V-Series Snap-Tite H/IH Interchange Unvalved Nipple (Female Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/4"

V2F2-E 1/4" - 18 NPTF

steel

$7.33

1.27 32.3 0.69 17.5 5/8" 0.05 5 50

1/4"

V2F2-B-E 1/4" - 18 NPTF

brass

8.02

1.27 32.3 0.69 17.5 5/8" 0.06 5 50

1/4"

V2F2-SS-E 1/4" - 18 NPTF 316 stainless

23.75

1.27 32.3 0.69 17.5 5/8" 0.06 5 50

1/4"

V2BF2-E 1/4" - 19 BSPP

steel

7.33

1.27 32.3 0.69 17.5 5/8" 0.06 5 50

1/4"

V2BF2-B-E 1/4" - 19 BSPP

brass

8.01

1.27 32.3 0.69 17.5 5/8" 0.06 5 50

1/4"

V2BF2-SS-E 1/4" - 19 BSPP 316 stainless

23.75

1.27 32.3 0.69 17.5 5/8" 0.05 5 50

3/8"

V3F3-E 3/8" - 18 NPTF

steel

8.18

1.41 35.8 0.90 22.9 13/16" 0.08 5 50

3/8"

V3F3-B-E 3/8" - 18 NPTF

brass

9.81

1.41 35.8 0.90 22.9 13/16" 0.08 5 50

3/8"

V3F3-SS-E 3/8" - 18 NPTF 316 stainless

34.52

1.41 35.8 0.90 22.9 13/16" 0.08 5 50

3/8"

V3BF3-E 3/8" - 19 BSPP

steel

8.17

1.41 35.8 0.90 22.9 13/16" 0.07 5 50

3/8"

V3BF3-B-E 3/8" - 19 BSPP

brass

9.81

1.41 35.8 0.90 22.9 13/16" 0.08 5 50

3/8"

V3BF3-SS-E 3/8" - 19 BSPP 316 stainless

34.52

1.41 35.8 0.90 22.9 13/16" 0.07 5 50

1/2"

V4F4-E 1/2" - 14 NPTF

steel

10.20

1.72 43.7 1.10 27.9 1"

0.18 5 25

1/2"

V4F4-B-E 1/2" - 14 NPTF

brass

11.93

1.72 43.7 1.10 27.9 1"

0.18 5 25

1/2"

V4F4-SS-E 1/2" - 14 NPTF 316 stainless

43.07

1.72 43.7 1.10 27.9 1"

0.18 5 25

1/2"

V4BF4-E 1/2" - 14 BSPP

steel

10.20

1.72 43.7 1.10 27.9 1"

0.17 5 25

1/2"

V4BF4-B-E 1/2" - 14 BSPP

brass

11.93

1.72 43.7 1.10 27.9 1"

0.17 5 25

1/2"

V4BF4-SS-E 1/2" - 14 BSPP 316 stainless

43.07

1.72 43.7 1.10 27.9 1"

0.16 5 25

3/4"

V6F6-E 3/4" - 14 NPTF

steel

14.51

1.86 47.2 1.31 33.3 1-3/16" 0.22 5 20

3/4"

V6F6-B-E 3/4" - 14 NPTF

brass

20.84

1.86 47.2 1.31 33.3 1-3/16" 0.22 5 20

3/4"

V6F6-SS-E 3/4" - 14 NPTF 316 stainless

60.85

1.86 47.2 1.31 33.3 1-3/16" 0.22 5 20

3/4"

V6BF6-E 3/4" - 14 BSPP

steel

14.51

1.86 47.2 1.31 33.3 1-3/16" 0.23 5 20

3/4"

V6BF6-B-E 3/4" - 14 BSPP

brass

20.84

1.86 47.2 1.31 33.3 1-3/16" 0.22 5 20

3/4"

V6BF6-SS-E 3/4" - 14 BSPP 316 stainless

60.85

1.86 47.2 1.31 33.3 1-3/16" 0.22 5 20

1"

V8F8-E 1" - 11 1/2 NPTF

steel

25.94

2.08 52.8 1.65 41.9 1-1/2" 0.38 -

10

1"

V8F8-B-E 1" - 11 1/2 NPTF

brass

27.06

2.08 52.8 1.65 41.9 1-1/2" 0.38 -

10

1"

V8F8-SS-E 1" - 11 1/2 NPTF 316 stainless

116.37

2.08 52.8 1.65 41.9 1-1/2" 0.38 -

10

1"

V8BF8-E 1" - 11 BSPP

steel

25.93

2.08 52.8 1.65 41.9 1-1/2" 0.38 -

10

1"

V8BF8-B-E 1" - 11 BSPP

brass

27.06

2.08 52.8 1.65 41.9 1-1/2" 0.38 -

10

1"

V8BF8-SS-E 1" - 11 BSPP 316 stainless

116.37

2.08 52.8 1.65 41.9 1-1/2" 0.38 -

10

1-1/4"

V10F10-E 1-1/4" - 11 1/2 NPTF

steel

50.63

2.22 56.4 2.06 52.3 1-7/8" 0.57 -

10

1-1/4"

V10F10-B-E 1-1/4" - 11 1/2 NPTF

brass

49.69

2.22 56.4 2.06 52.3 1-7/8" 0.56 -

10

1-1/4"

V10F10-SS-E 1-1/4" - 11 1/2 NPTF 316 stainless

205.12

2.22 56.4 2.06 52.3 1-7/8" 0.56 -

10

1-1/4"

V10BF10-E 1-1/4" - 11 BSPP

steel

50.63

2.22 56.4 2.06 52.3 1-7/8" 0.57 -

10

1-1/4"

V10BF10-B-E 1-1/4" - 11 BSPP

brass

49.68

2.22 56.4 2.06 52.3 1-7/8" 0.55 -

10

1-1/4"

V10BF10-SS-E 1-1/4" - 11 BSPP 316 stainless

205.12

2.22 56.4 2.06 52.3 1-7/8" 0.55 -

10

1-1/2"

V12F12-E 1-1/2" - 11 1/2 NPTF

steel

86.49

2.44 62.0 2.33 59.2 2-1/8" 0.84 -

5

1-1/2"

V12F12-B-E 1-1/2" - 11 1/2 NPTF

brass

137.76

2.44 62.0 2.33 59.2 2-1/8" 0.84 -

5

1-1/2"

V12F12-SS-E 1-1/2" - 11 1/2 NPTF 316 stainless

295.66

2.44 62.0 2.33 59.2 2-1/8" 0.83 -

5

2"

V16F16-E 2" - 11 1/2 NPTF

steel

114.28

2.60 66.0 3.01 76.5 2-3/4" 1.34 -

5

2"

V16F16-B-E 2" - 11 1/2 NPTF

brass

169.26

2.60 66.0 3.01 76.5 2-3/4" 1.34 -

5

2"

V16F16-SS-E 2" - 11 1/2 NPTF 316 stainless

408.51

2.60 66.0 3.01 76.5 2-3/4" 1.35 -

5
