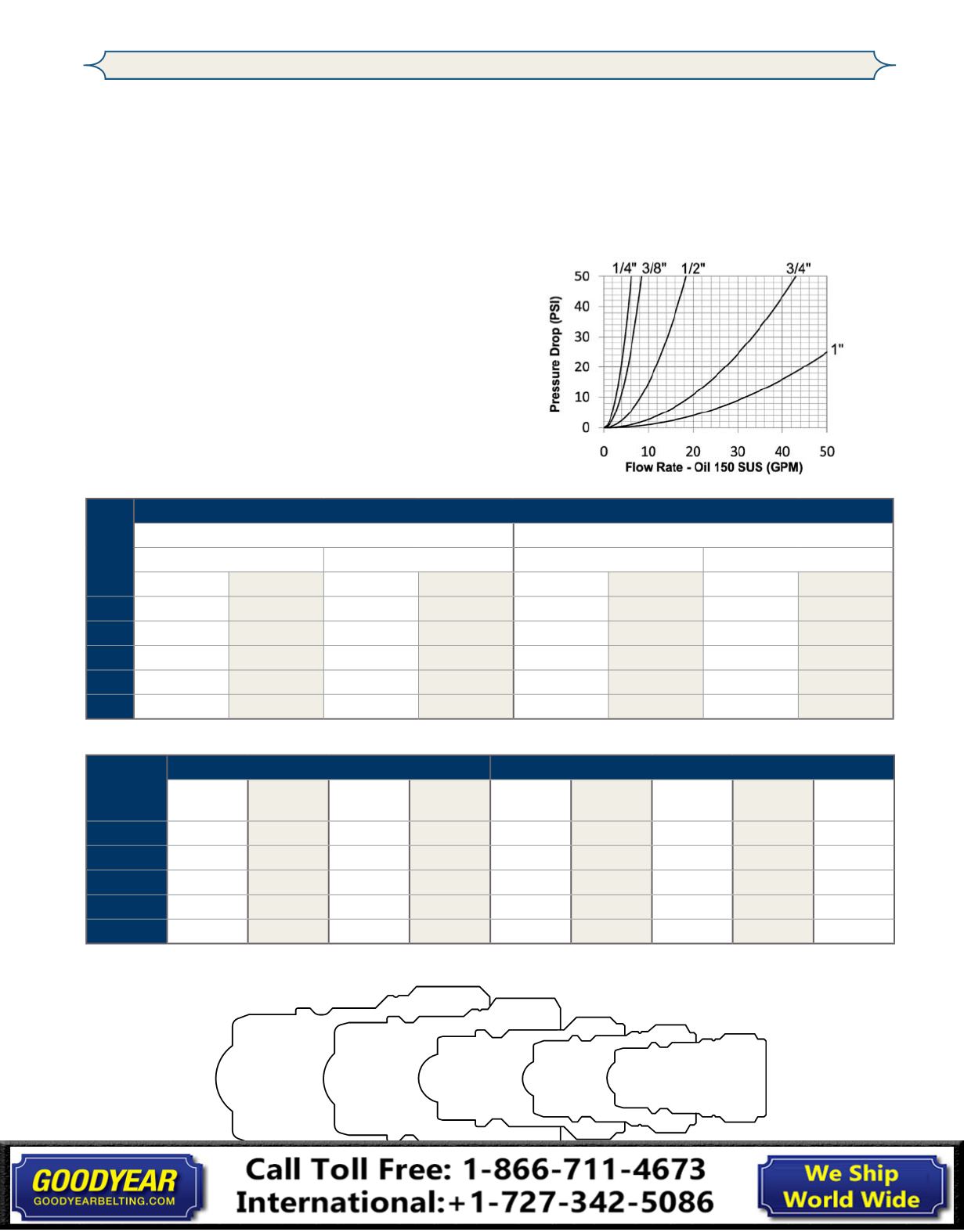

79

DQC116

877.963.4966 •

dixonvalve.com

AG-Series Hydraulic Couplings

Interchange Data:

Pioneer Agricultural Interchange

Parker/Pioneer 4000 Series, Faster NS/NV-Series

Safeway Series-S20, Stucchi IR-Series, Snap-Tite 60-Series

Materials:

Machined components are manufactured using solid steel

bar stock.

Stainless steel balls, retaining rings, and springs maximize

corrosion resistance and extend service life.

Steel componentry is plated using ROHS Compliant

Trivalent Chrome.

Steel coupler sleeves are hardened to resist deformation

and maximize service life.

Steel nipples are hardened to provide heavy duty

performance and resist brinneling.

Nitrile (Buna-N) seals are standard, providing a temperature

range of

-40°F

to

+250°F

(

-40°C

to

+121°C

).

Couplers have a PTFE Anti-Extrusion ring.

Poppet valve seals are crimped in place to maintain

integrity during excessive flow conditions and pressurized

connection.

Piloted ball valve has a seal that is crimped to prevent low-

pressure leakage.

Seal Components:

Rated Pressure Chart:

Body

Size

AG-Series Agricultural Interchange (Connected)

Ball Steel Coupler/Plug

Poppet Steel Coupler/Plug

Maximum Working

Burst

Maximum Working

Burst

PSI

Bar

PSI

Bar

PSI

Bar

PSI

Bar

1/4"

4,000

275

24,400

1,700

4,000

275

21,000

1,500

3/8"

4,000

275

25,000

1,700

4,000

275

23,100

1,600

1/2"

4,000

275

16,500

1,100

4,000

275

16,500

1,100

3/4"

3,000

200

15,800

1,050

3,000

200

10,300

700

1"

3,000

200

13,500

900

3,000

200

13,000

900

Technical Specifications:

Body

Size

Interchange Standards

Functional Parameters

U.S.

Military

U.S.

Government

International

Standards

ANSI/NFPA

Standards

Locking Ball

Quantity

Air

Inclusion

Fluid

Loss

Vacuum

Inch HG

Flow

ΔP = 22 PSI

1/4"

-

-

-

-

8

1.1cc

0.9cc

26.5

4 GPM

3/8"

-

-

-

-

9

2.6cc

1.8cc

26.5

6 GPM

1/2"

-

-

ISO7241 'A'

-

9

3.8cc

2.9cc

26.5

12 GPM

3/4"

-

-

ISO5675

-

12

10.8cc

9.7cc

26.5

28 GPM

1"

-

-

-

-

12

15.9cc

15.3cc

26.5

48 GPM

AG Series Profiles

1"

3/4"

1/2"

3/8" 1/4"
