130

DQC116

877.963.4966 •

dixonvalve.com

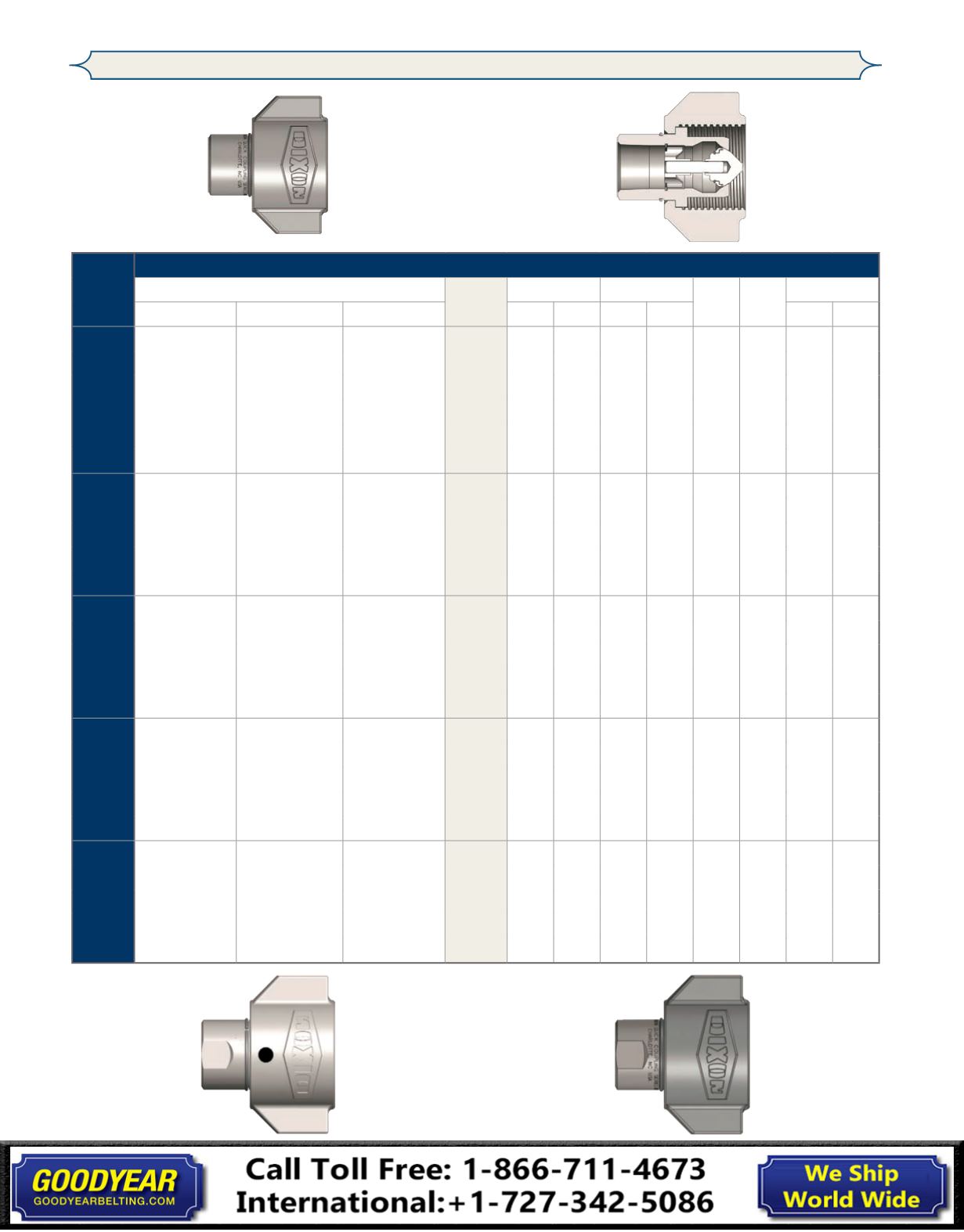

WS-Series Hydraulic Couplings

Body

Size

WS-Series High Pressure Wingstyle Interchange Coupler (Female Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

3/4"

6WSF4

1/2" - 14 NPTF

steel

$160.01

2.76 70.1 3.23 82.0 -

1.86 -

5

3/4"

6WSF6

3/4" - 14 NPTF

steel

155.44

2.76 70.1 3.23 82.0 -

1.80 -

5

3/4"

6WSF6-SS 3/4" - 14 NPTF 316 stainless

1913.22

2.76 70.1 3.23 82.0 -

1.80 -

5

3/4"

6WSBF6 3/4" - 14 BSPP

steel

155.44

2.76 70.1 3.23 82.0 -

1.80 -

5

3/4"

6WSBF6-SS 3/4" - 14 BSPP 316 stainless

2391.52

2.76 70.1 3.23 82.0 -

1.80 -

5

3/4"

6WSOF6 1-1/16" - 12 ORB

steel

171.44

2.76 70.1 3.23 82.0 -

1.78 -

5

1"

8WSF8 1" - 11 1/2 NPTF

steel

233.16

3.45 87.6 4.00 101.6 -

3.30 -

5

1"

8WSF8-SS 1" - 11 1/2 NPTF 316 stainless

2158.50

3.45 87.6 4.00 101.6 -

3.30 -

5

1"

8WSBF8

1" - 11 BSPP

steel

233.16

3.45 87.6 4.00 101.6 -

3.30 -

5

1"

8WSBF8-SS 1" - 11 BSPP 316 stainless

2698.12

3.45 87.6 4.00 101.6 -

3.30 -

5

1"

8WSOF8 1-5/16" - 12 ORB

steel

262.87

3.45 87.6 4.00 101.6 -

3.26 -

5

1-1/4"

10WSF10 1-1/4" - 11 1/2 NPTF

steel

394.31

4.40 111.8 4.65 118.1 -

5.70 -

1

1-1/4"

10WSF10-SS 1-1/4" - 11 1/2 NPTF 316 stainless

3532.09

4.40 111.8 4.65 118.1 -

5.70 -

1

1-1/4"

10WSBF10 1-1/4" - 11 BSPP

steel

394.31

4.40 111.8 4.65 118.1 -

5.70 -

1

1-1/4"

10WSBF10-SS 1-1/4" - 11 BSPP 316 stainless

4415.11

4.40 111.8 4.65 118.1 -

5.70 -

1

1-1/4"

10WSOF10 1-5/8" - 12 ORB

steel

422.88

4.40 111.8 4.65 118.1 -

5.68 -

1

1-1/2"

12WSF12 1-1/2" - 11 1/2 NPTF

steel

582.88

5.13 130.3 5.43 137.9 -

8.90 -

1

1-1/2"

12WSF12-SS 1-1/2" - 11 1/2 NPTF 316 stainless

4317.00

5.13 130.3 5.43 137.9 -

8.90 -

1

1-1/2"

12WSBF12 1-1/2" - 11 BSPP

steel

582.88

5.13 130.3 5.43 137.9 -

8.90 -

1

1-1/2"

12WSBF12-SS 1-1/2" - 11 BSPP 316 stainless

4317.00

5.13 130.3 5.43 137.9 -

8.90 -

1

1-1/2"

12WSOF12 1-7/8" - 12 ORB

steel

628.60

5.13 130.3 5.43 137.9 -

8.87 -

1

2"

16WSF16 2" - 11 1/2 NPTF

steel

834.32

6.09 154.7 6.73 170.9 -

17.10 -

1

2"

16WSF16-SS 2" - 11 1/2 NPTF 316 stainless

5592.48

6.09 154.7 6.73 170.9 -

17.10 -

1

2"

16WSBF16 2" - 11 BSPP

steel

834.32

6.09 154.7 6.73 170.9 -

17.10 -

1

2"

16WSBF16-SS 2" - 11 BSPP 316 stainless

5592.48

6.09 154.7 6.73 170.9 -

17.10 -

1

2"

16WSOF16 2-1/2" - 12 ORB

steel

862.90

6.09 154.7 6.73 170.9 -

16.96 -

1

WS coupler with wrench flats example

* Wrench flats may result in reduced pressure performance.

WS coupler with view port example
