127

DQC116

877.963.4966 •

dixonvalve.com

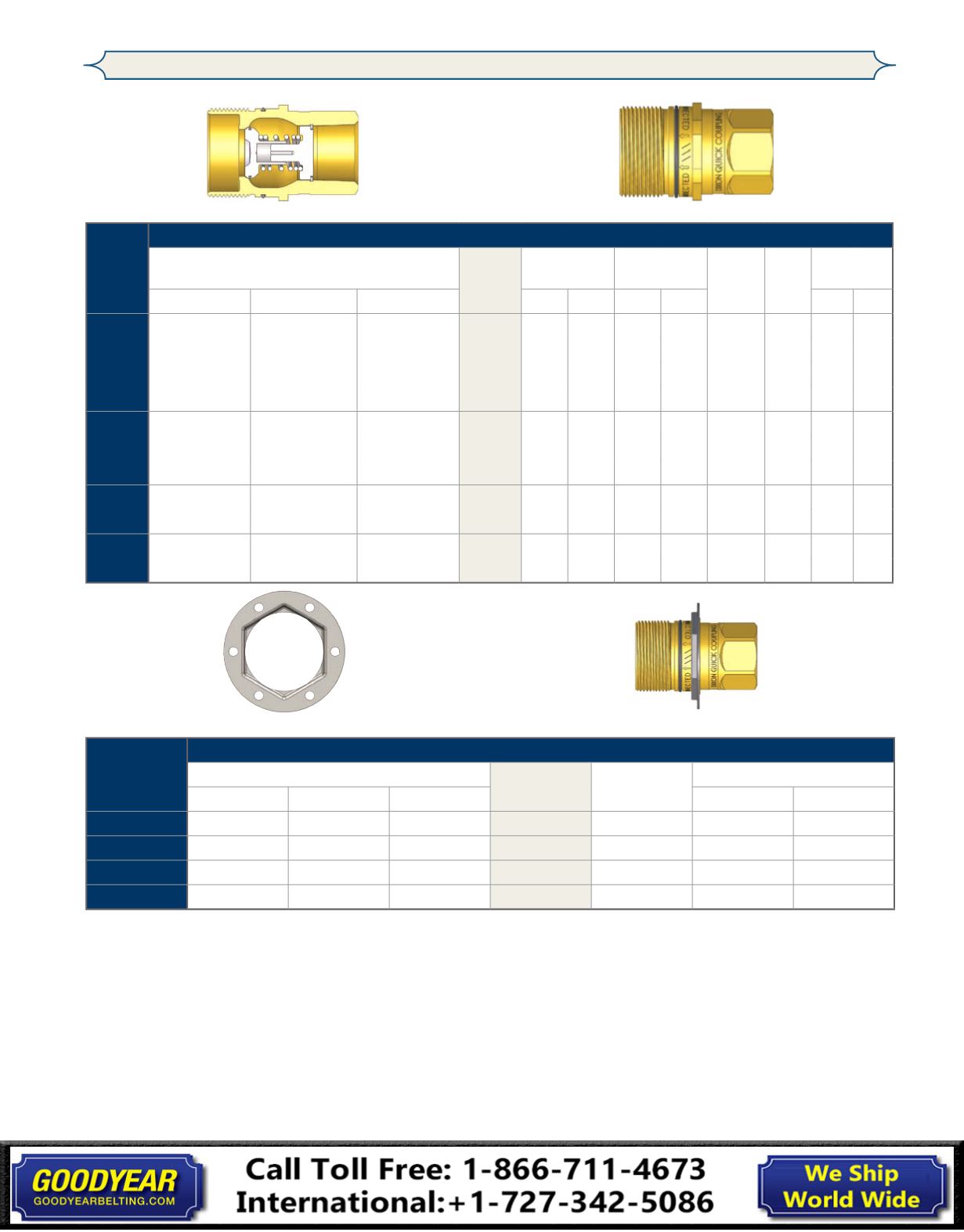

W-Series Hydraulic Couplings

Body

Size

W-Series Wingstyle Interchange Nipple (Female Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package

Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

3/4"

W6F4-B 1/2" - 14 NPTF

brass

$56.23

2.85 72.4 1.75 44.5 1-5/16" 0.82 -

10

3/4"

W6BF4-B 1/2" - 14 BSPP

brass

72.14

2.85 72.4 1.75 44.5 1-5/16" 0.82 -

10

3/4"

W6F6-B 3/4" - 14 NPTF

brass

56.23

2.85 72.4 1.75 44.5 1-5/16" 0.79 -

10

3/4"

W6BF6-B 3/4" - 14 BSPP

brass

72.14

2.85 72.4 1.75 44.5 1-5/16" 0.79 -

10

1"

W8F8-B 1" - 11 1/2 NPTF

brass

60.47

3.15 80.0 2.00 50.8 1-9/16" 1.10 -

10

1"

W8F8

1" - 11 1/2 NPTF

steel

63.65

3.15 80.0 2.00 50.8 1-9/16" 1.10 -

10

1"

W8BF8-B 1" - 11 BSPP

brass

76.38

3.15 80.0 2.00 50.8 1-9/16" 1.10 -

10

1-1/4"

W10F10-B 1-1/4" - 11 1/2 NPTF

brass

125.19

3.39 86.1 2.37 60.2 1-15/16" 1.40 -

5

1-1/4"

W10BF10-B 1-1/4" - 11 BSPP

brass

141.10

3.39 86.1 2.37 60.2 1-15/16" 1.40 -

5

1-1/2"

W12F12-B 1-1/2" - 11 1/2 NPTF

brass

212.18

3.74 95.0 2.73 69.3 2-1/4" 2.26 -

5

1-1/2"

W12BF12-B 1-1/2" - 11 BSPP

brass

228.09

3.74 95.0 2.73 69.3 2-1/4" 2.26 -

5

Body

Size

W-Series Wingstyle Interchange Nipple Mounting Flange

Part Detail

List

Price

Weight

Lb

Package Qty

Part Number Bolt Hole Size Material

Bag

Box

3/4"

W6-BMF

0.201"

steel

$4.77

0.07

5

50

1"

W8-BMF

0.201"

steel

6.37

0.07

5

50

1-1/4"

W10-BMF

0.201"

steel

8.49

0.29

5

50

1-1/2"

W12-BMF

0.201"

steel

10.61

0.76

5

50

nipple not included with flange
