134

DQC116

877.963.4966 •

dixonvalve.com

T-Series Hydraulic Couplings

Interchange Data:

High Pressure Screw-Together Interchange

Parker/Pioneer 3000-Series, Enerpac C604, Stucchi IVHP

Hansen WS56000, Snap-Tite 76-Series, DNP PVM

Materials:

Machined components are manufactured using solid steel

or 316 stainless steel bar stock.

Chrome steel ball valve is mechanically seated to improve

low pressure sealing performance.

Steel nipples are machined from solid high strength steel

bar stock.

Steel componentry is plated using ROHS Compliant

Trivalent Chrome.

Urethane seal is standard in ball valve couplers and

provides resistance to extrusion when subjected to

high pressure - temperature range

-40°F

to

+180°F

(

-40°C

to

+82°C

).

Nitrile seals are standard in poppet valve couplings,

providing a temperature range of

-40°F

to

+250°F

(

-40°C

to

+121°C

).

Seal Components:

Body

Size

T-Series High Pressure Enerpac Interchange (Connected)

Steel Ball Coupler/Plug 316 SS Ball Coupler/Plug Steel Poppet Coupler/Plug 316 SS Poppet Coupler/Plug

Max. Working Burst

Max. Working Burst

Max. Working Burst

Max. Working Burst

PSI

Bar

PSI

Bar

PSI

Bar

PSI

Bar

PSI

Bar

PSI

Bar

PSI

Bar

PSI

Bar

1/4"

10,000 700 34,300 2,350 -

-

-

-

-

-

-

-

-

-

-

-

3/8"

10,000 700 30,000 2,050 10,000 700 30,900 2,100 10,000 700 36,800 2,500 10,000 700 36,500 2,500

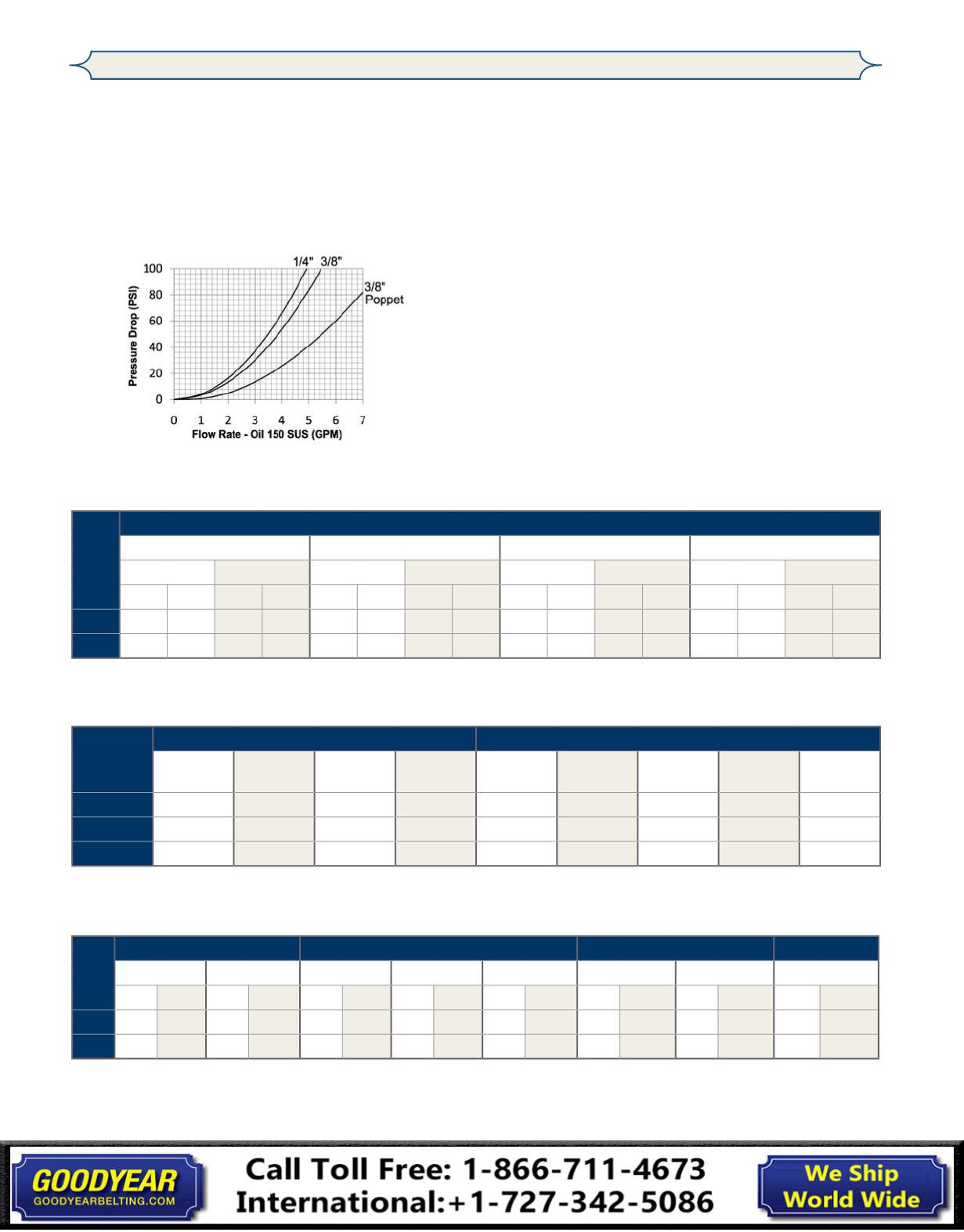

Rated Pressure Chart:

Technical Specifications:

Body

Size

Interchange Standards

Functional Parameters

U.S.

Military

U.S.

Government

International

Standards

ANSI/NFPA

Standards

Valve

Style

Air

Inclusion

Fluid

Loss

Vacuum

Inch HG

Flow

ΔP = 60 PSI

1/4"

-

-

ISO14540

-

Ball

0.97

0.56

N/R 3.8 GPM

3/8"

-

-

ISO14540

-

Ball

2.04

0.98

N/R 4.2 GPM

3/8"

-

-

ISO14540

-

Poppet

1.56

0.77

N/R 6 GPM

List Price Seal Option Adders:

Body

Size

Seal Options

Kalrez

®

Seal Options

Valve Options

Treatments

FKM Mil-Nitrile

4079

6375

7075

Unvalved

316 SS Oxy-Clean

Pre Add $ Pre Add $ Pre Add $ Pre Add $ Pre Add $ Suf Add $ Suf Add $ Suf

Add $

1/4"

F-

$0.00

M-

$0.00

K4-

POR

K6-

POR

K7-

POR

-E

-$3.00

SSV

N/A

-C1

$12.00

3/8"

F-

0.00

M-

0.00

K4-

POR

K6-

POR

K7-

POR

-E

-4.40

SSV

N/A

-C1

12.00
