122

DQC116

877.963.4966 •

dixonvalve.com

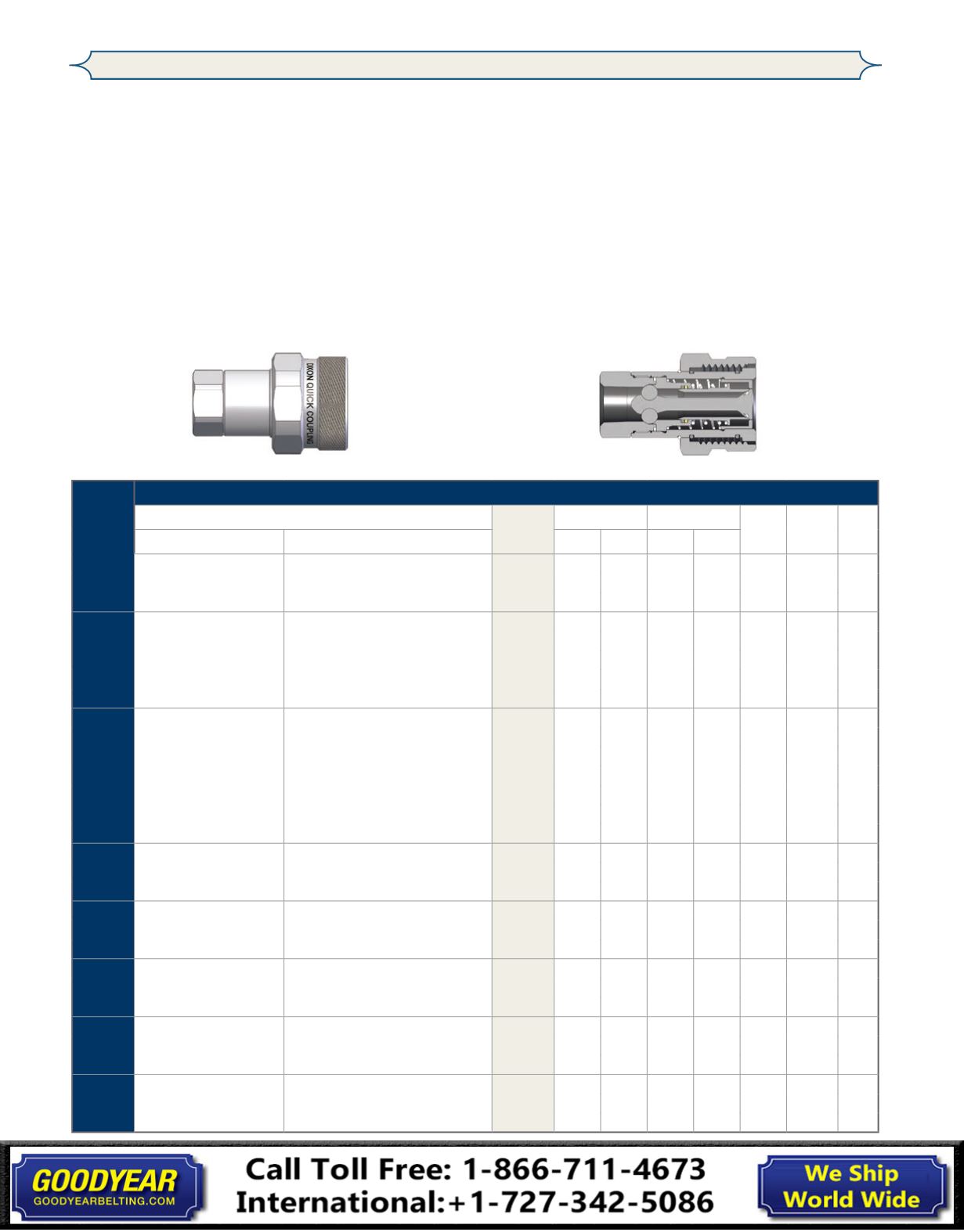

VEP-Series Hydraulic Couplings

Body

Size

VEP-Series Interchange Coupler (Female Threads)

Part Detail

List

Price

Length Maximum OD Hex

mm

Weight

Lb

Box

Qty

Part Number

Threads

Inch mm Inch mm

1/4"

2VEPF2

1/4" - 18 NPTF

$108.77

2.14 54.4 1.49 37.8 22 0.49 20

1/4"

2VEPBF2

1/4"- 19 BSPP

108.77

2.14 54.4 1.49 37.8 22 0.49 20

1/4"

2VEPOF3

9/16" - 18 ORB

119.65

2.14 54.4 1.49 37.8 22 0.49 20

3/8"

3VEPF3

3/8" - 18 NPTF

121.80

2.55 64.8 1.62 41.1 25 0.63 20

3/8"

3VEPBF3

3/8" - 19 BSPP

123.36

2.55 64.8 1.62 41.1 25 0.63 20

3/8"

3VEPOF4

3/4" - 16 ORB

126.54

2.77 70.4 1.62 41.1 25 0.67 20

3/8"

3VEPF4

1/2" - 14 NPTF

124.53

2.77 70.4 1.62 41.1 28 0.66 20

3/8"

3VEPBF4

1/2" - 14 BSPP

123.36

2.77 70.4 1.62 41.1 28 0.66 20

1/2"

4VEPF4

1/2" - 14 NPTF

158.55

3.08 78.2 1.98 50.3 30 1.36 15

1/2"

4VEPBF4

1/2" - 14 BSPP

162.99

3.08 78.2 1.98 50.3 30 1.36 15

1/2"

4VEPOF4

3/4" - 16 ORB

164.69

3.08 78.2 1.98 50.3 30 1.38 15

1/2"

4VEPOF5

7/8" - 14 ORB

164.69

3.18 80.8 1.98 50.3 32 1.43 15

1/2"

4VEPF6

3/4" - 14 NPTF

162.65

3.38 85.9 1.98 50.3 38 1.57 15

1/2"

4VEPBF6

3/4" - 14 BSPP

162.99

3.38 85.9 1.98 50.3 38 1.57 15

1/2"

4VEPOF6

1-1/16" - 12 ORB

164.69

3.58 90.9 1.98 50.3 38 1.59 15

3/4"

6VEPF6

3/4" - 14 NPTF

206.17

3.37 85.6 2.19 55.6 38 1.70 1

3/4"

6VEPBF6

3/4" - 14 BSPP

211.11

3.37 85.6 2.19 55.6 38 1.70 1

3/4"

6VEPOF6

1-1/16" - 12 ORB

206.17

3.37 85.6 2.19 55.6 38 1.70 1

1"

8VEPF8

1" - 11 1/2 NPTF

261.27

3.89 98.8 2.46 62.5 44 2.44 1

1"

8VEPBF8

1" - 11 BSPP

265.86

3.89 98.8 2.46 62.5 44 2.44 1

1"

8VEPOF8

1-5/16" - 12 ORB

263.30

3.89 98.8 2.46 62.5 44 2.44 1

1-1/4"

10VEPF10

1-1/4" - 11 1/2 NPTF

302.10

4.40 111.8 2.70 68.6 55 3.76 1

1-1/4"

10VEPBF10

1-1/4" - 11 BSPP

316.90

4.40 111.8 2.70 68.6 55 3.76 1

1-1/4"

10VEPOF10

1-5/8" - 12 ORB

305.27

4.40 111.8 2.70 68.6 55 3.75 1

1-1/2"

12VEPF12

1-1/2" - 11 1/2 NPTF

866.42

5.28 134.1 3.74 95.0 63 9.09 1

1-1/2"

12VEPBF12

1-1/2" - 11 BSPP

919.16

5.28 134.1 3.74 95.0 63 9.09 1

1-1/2"

12VEPOF12

1-7/8" - 12 ORB

885.01

5.28 134.1 3.74 95.0 63 9.10 1

2"

16VEPF16

2" - 11 1/2 NPTF

2978.76

9.42 239.3 7.39 187.7 89 33.56 1

2"

16VEPBF16

2" - 11 BSPP

3535.55

9.42 239.3 7.39 187.7 89 33.56 1

2"

16VEPOF16

2-1/2" - 12 ORB

2978.76

9.42 239.3 7.39 187.7 89 33.56 1

How to Connect & Disconnect the VEP-Series Coupling

1. Prior to connecting, thoroughly clean all mating surfaces and threads on both halves, then pull the coupler

sleeve forward.

2. To initiate the connection, align the coupler and plug, pushing/turning the coupler sleeve towards the plug while

engaging the threads. Keep the mating halves aligned during the connection process.

3. Allow the threads to pull the coupler onto the plug, do not push the coupler onto the plug.

4. The first phase of the connection should be threaded by hand, without the use of tools. Please note the connection

sleeve may seize when dirt and debris accumulate in the threads - wipe away debris with a cloth, compressed air,

or a brush.

5. The second phase of the connection may require a wrench if the pressure is higher than anticipated.

6. Continue to thread the coupler sleeve onto the plug until the end of the sleeve meets the plug body

7. To disconnect, use a wrench to break the coupler sleeve free and keep the mating halves aligned during the

disconnection process.
