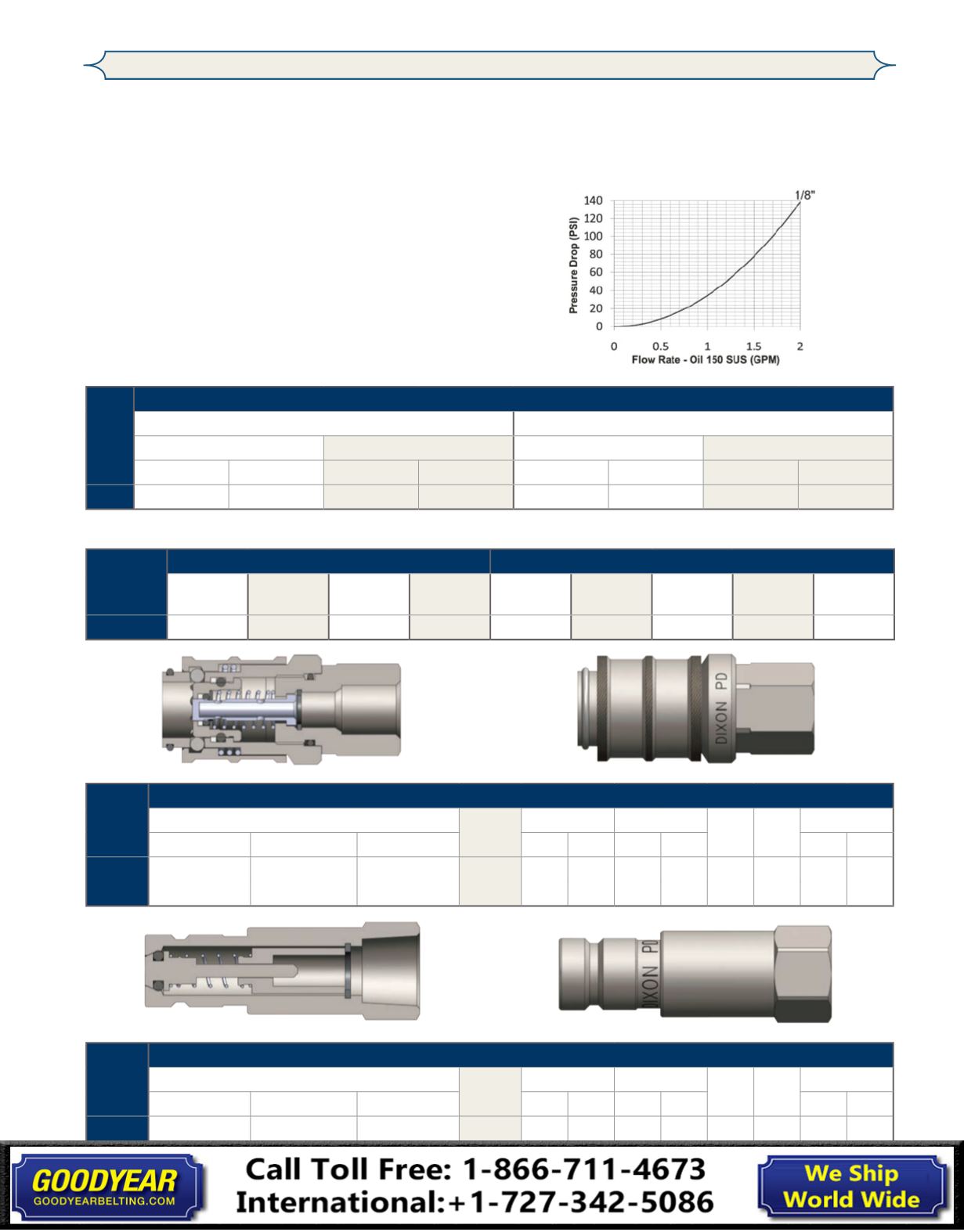

119

DQC116

877.963.4966 •

dixonvalve.com

PD-Series Hydraulic Couplings

Interchange Data:

Interchangeable to ISO15171-1

Parker PD-Series, Aeroquip FD90, Tomco Series DK

Materials:

Machined components are manufactured using solid steel

bar stock.

Stainless steel springs. Carbon steel balls and retaining

rings.

Steel nipples are machined from solid steel bar stock and

hardened.

Steel componentry is plated using ROHS Compliant

Trivalent Chrome.

Nitrile (Buna-N) seals are standard, providing a temperature

range of

-40°F

to

+250°F

(

-40°C

to

+121°C

).

PTFE anti-extrusion ring protects main coupler O-ring from

dynamic impulse pressure damage.

Seal Components:

Rated Pressure Chart:

Body

Size

PD-Series ISO15171-1 Diagnostic Interchange

Steel Coupler/Plug Connected

Steel Plug Disconnected

Maximum Working

Burst

Maximum Working

Burst

PSI

Bar

PSI

Bar

PSI

Bar

PSI

Bar

1/8"

6,000

400

18,700

1,300

6,000

400

24,000

1,600

Technical Specifications:

Body

Size

Interchange Standards

Functional Parameters

U.S.

Military

U.S.

Government

International

Standards

ANSI/NFPA

Standards

Locking Ball

Quantity

Air

Inclusion

Fluid

Loss

Vacuum

Rating

Flow

ΔP = 22 PSI

1/8"

-

-

ISO15171-1 SAE J1502 10

0.02

0.1

27.4

0.8

Body

Size

PD-Series ISO15171-1 Diagnostic Coupler (Female Threads)

Part Detail

List

Price

Length Maximum OD Hex

mm

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/8"

1PDF1

1/8" - 27 NPT

steel

$48.52

2.13 54.102 0.98 24.892 21 0.18 10 100

1/8"

1PDF2

1/4" - 18 NPT

steel

48.52

2.13 54.102 0.98 24.892 21 0.16 10 100

Body

Size

PD-Series ISO15171-1 Diagnostic Nipple (Female Threads)

Part Detail

List

Price

Length Mazimum OD Hex

mm

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/8"

PD1F1

1/8" - 27 NPT

steel

$15.83

1.88 47.752 0.76 19.304 17 0.04 10 100

1/8"

PD1F2

1/4" - 18 NPT

steel

11.92

1.88 47.752 0.76 19.304 17 0.04 10 100
