121

DQC116

877.963.4966 •

dixonvalve.com

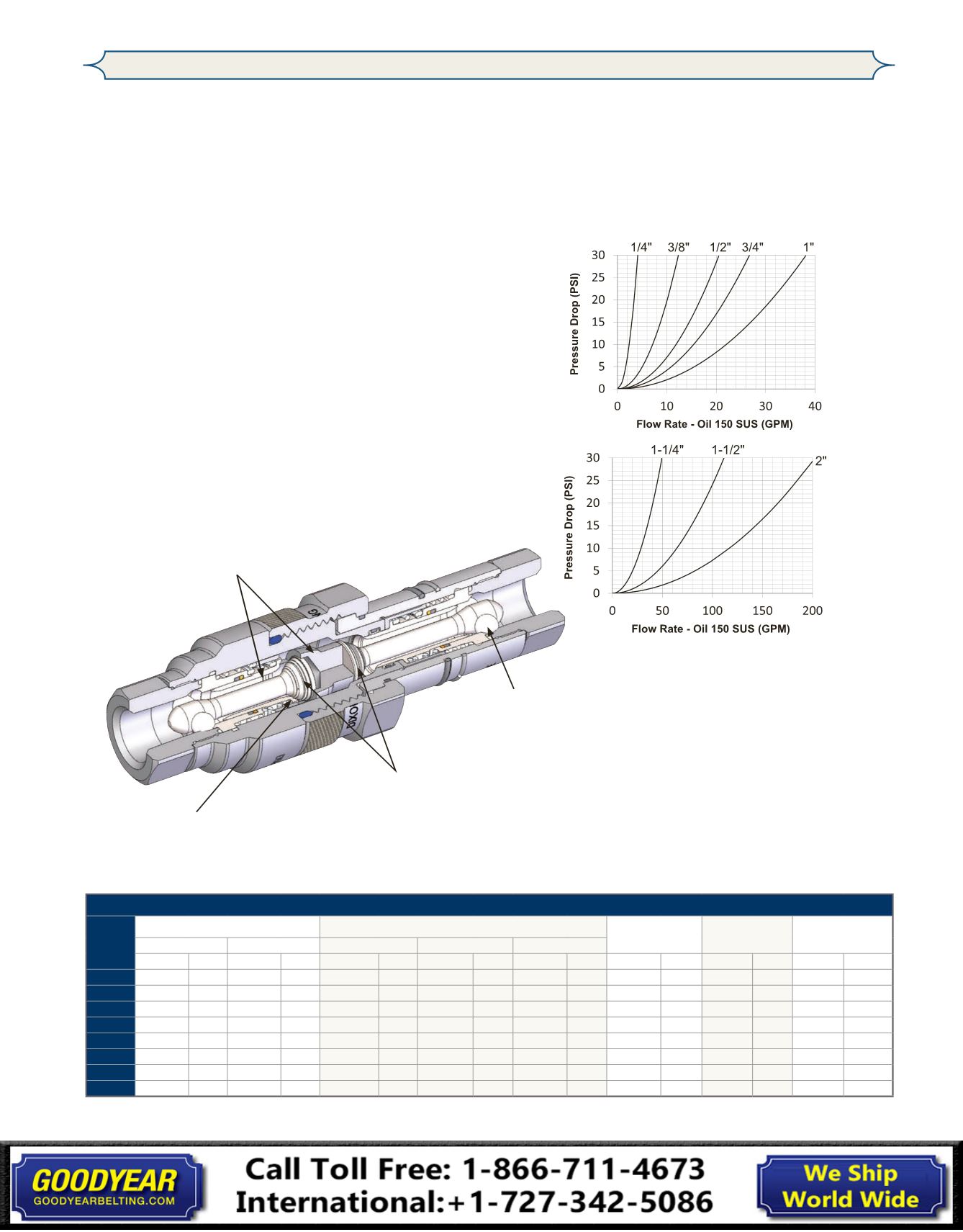

VEP-Series Hydraulic Couplings

VEP-Series Interchange

Body

Size

Pressure Rating

Burst Pressure

Max. Pressure

Connect

3

Max. Pressure

Disconnect

3

Rated Flow

ΔP=21.75psi

ISO Working

1

Max. Impulse

2

Connected

Coupler

Plug

PSI

MPa PSI

MPa PSI

MPa PSI

MPa PSI

MPa PSI

MPa PSI

MPa GPM L/min

1/4"

6,000 40 9,000 62 24,000 165 22,000 152 22,000 152 5,500 38 5,500 38 3.5 13

3/8"

5,500 38 8,000 55 22,000 152 18,000 124 20,000 138 4,500 31 4,500 31 10.5 40

1/2"

5,500 38 8,000 55 22,000 152 18,000 124 20,000 138 4,500 31 4,500 31 17.5 66

3/4"

5,500 38 8,000 55 22,000 152 18,000 124 20,000 138 4,500 31 4,500 31 22.7 85

1"

5,500 38 7,500 52 22,000 152 14,500 100 20,000 138 3,625 25 3,625 25 32.5 123

1-1/4"

5,000 35 7,000 48 20,000 138 14,500 100 16,000 110 3,625 25 3,625 25 46.4 174

1-1/2"

4,500 31 5,800 40 18,000 124 12,000 83 14,500 100 3,000 21 3,000 21 95.0 360

2"

4,000 28 5,000 35 18,000 124 12,000 83 14,500 100 3,000 21 3,000 21 172.5 653

1

Couplings Impulse tested in accordance with ISO7241-2 for 1,000,000 cycles connected and 100,000 cycles disconnected at 133% of

ISO Working Pressure.

2

Couplings Impulse tested in accordance with ISO7241-2 for 100,000 cycles connected and disconnected at Maximum Impulse pressure listed

3

System temperature for Maximum Connect/Disconnect Pressure must not exceed 150°F (65°C)

Rated Pressure Chart:

Materials:

Machined components are manufactured using solid

steel bar stock

Stainless steel retaining rings and springs maximize

corrosion resistance and extend service life

Steel componentry is plated using ROHS Compliant

Zinc Nickel for superior corrosion resistance.

Interchange Data:

Interchangeable

with Stucchi VEP-P/VEP-HD Series,

DNP PST4/FSI Series, Voswinkel FT Series, Parker

FET-Series, and Holmbury HFT Series.

DORS Retention System

optimizes flow and

impulse pressure

performance

High performance stem

seals constructed of

Acetal or Polyurethane

Posi-Lock valve system secures

valving during surge-flow conditions

to prevent high-velocity damage

Two-stage valving to protect critical

sealing components during pressurized

connection & disconnection

Seal Components:

Nipples have Nitrile-Energized PTFE valve seals, with a

temperature range of

-40°F

to

+250°F

(

-40C°

to

+121°C

)

⅜" nipples have molded Polyurethane valve seals,

with a temperature range of

-65°F

to

+212°F

(

-54°C

to

+100°C

)

¼" to ¾" valve stems have molded Acetal seals, with

a temperature range of

-65°F

to

+212°F

(

-54°C

to

+100°C

)

1" to 2" valve stems have molded Polyurethane seals,

with a temperature range of

-65°F

to

+212°F

(

-54°C

to

+100°C

)

Ancillary coupler and nipple seals are Nitrile (Buna-N),

with a temperature range of

-40°F

to

+250°F

(

-40C°

to

+121°C

)

TPC-ET Anti-Extrusion ring protects main coupling

valve seal from dynamic impulse pressure damage
