V-Belts

Installation Guide

9

V-Belts

Installation Guide

Insert the bushing in the hub and slide it onto the shaft. Align a

threaded hub hole with non-threaded bushing hole.

Start the setscrews into the holes that are threaded in the hub

only. Do not tighten the setscrews yet.

Align both edges of the sheave with the edges of its

mating sheave.

Tighten the screws alternately and evenly. This procedure will

wedge the bushing inward and cause it to contract evenly and

grip the shaft.

8. How to remove a sheave made with a

taper-lock hub

Remove all the setscrews.

Place two of the setscrews in the holes that are threaded in the

bushing only.

Turn the setscrews alternately and evenly. This movement will

unlock the grip and permit easy removal of the assembly with

no shock to the bearings or machinery.

9. Check alignment

Proper alignment is essential for long V-belt life. Check belt

alignment whenever you maintain or replace belts or

whenever you remove or install sheaves. Limit misalignment

to 1/2 degree or approximately 1/10 inch per foot of

center distance.

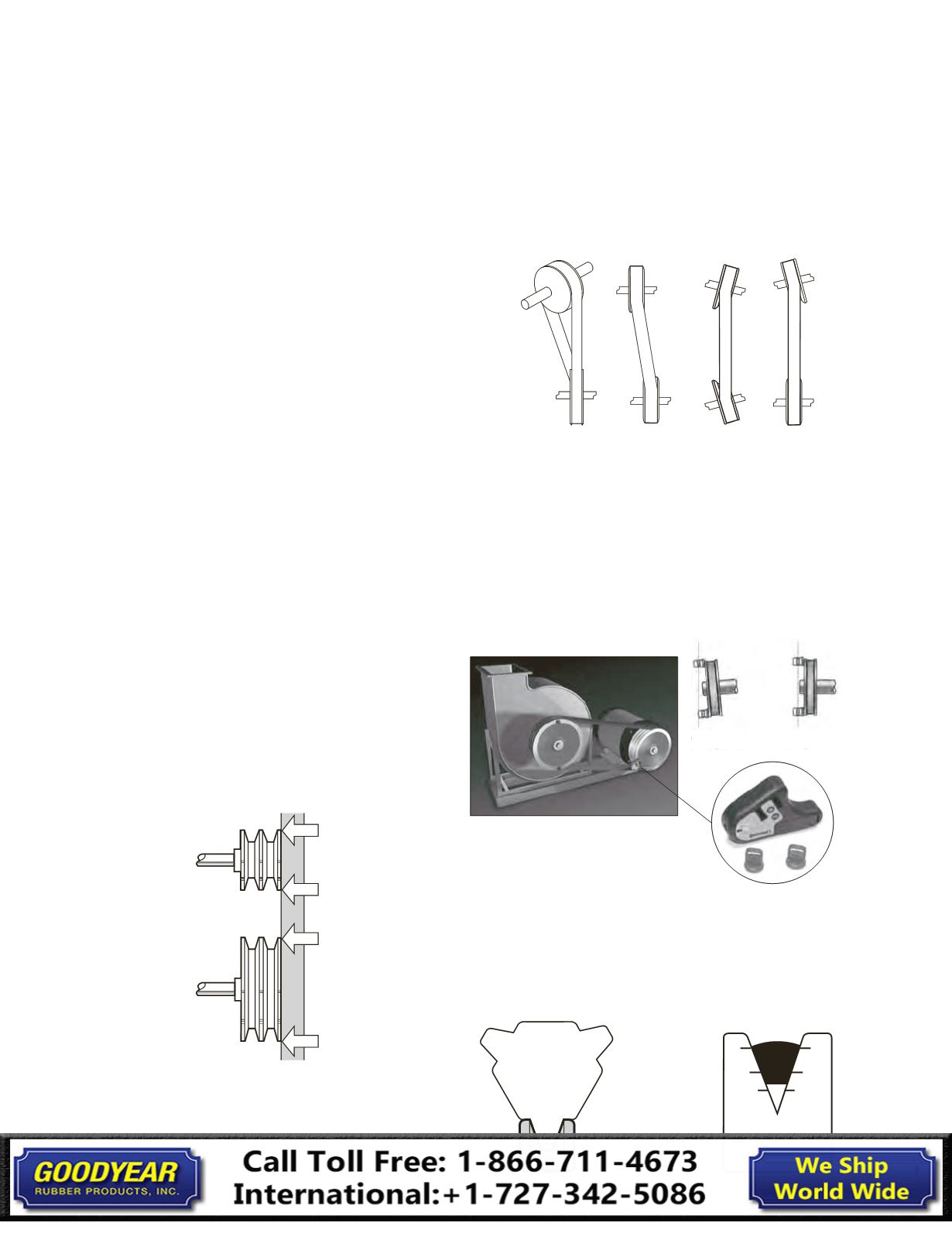

The illustration above shows the correct way to check

alignment between two sheaves with a straight edge. Check

both front and back alignment. Straight edge should touch

sheaves at the four points indicated.

Non-parallel shafts or sheaves not aligned axially can cause

angular misalignment.

Laser Alignment Tool

With our Laser Alignment Tool, you can quickly align drive

components to improve efficiency and reduce costly

maintenance. Much easier to use than a straight edge, it

attaches in seconds and when the highly-visible sight line lies

within the target openings, the pulley/sprockets are aligned.

10. Identify correct belt

Always select belts to match sheave grooves. Use a sheave

groove gauge to determine the proper belt cross section

(Figure A).

Use a belt gauge to verify the old belt cross section when belt

identification is no longer legible (Figure B).

8V

Over 22.4

O.D.

42°

Up to 16.00

O.D.

38°

16.00 Thru 22.4

O.D.

40°

Figure A

8V

5V

3V

1in.

5/8 in.

3/8 in.

Figure B

Misaligned

Aligned
