MAXZONE tm

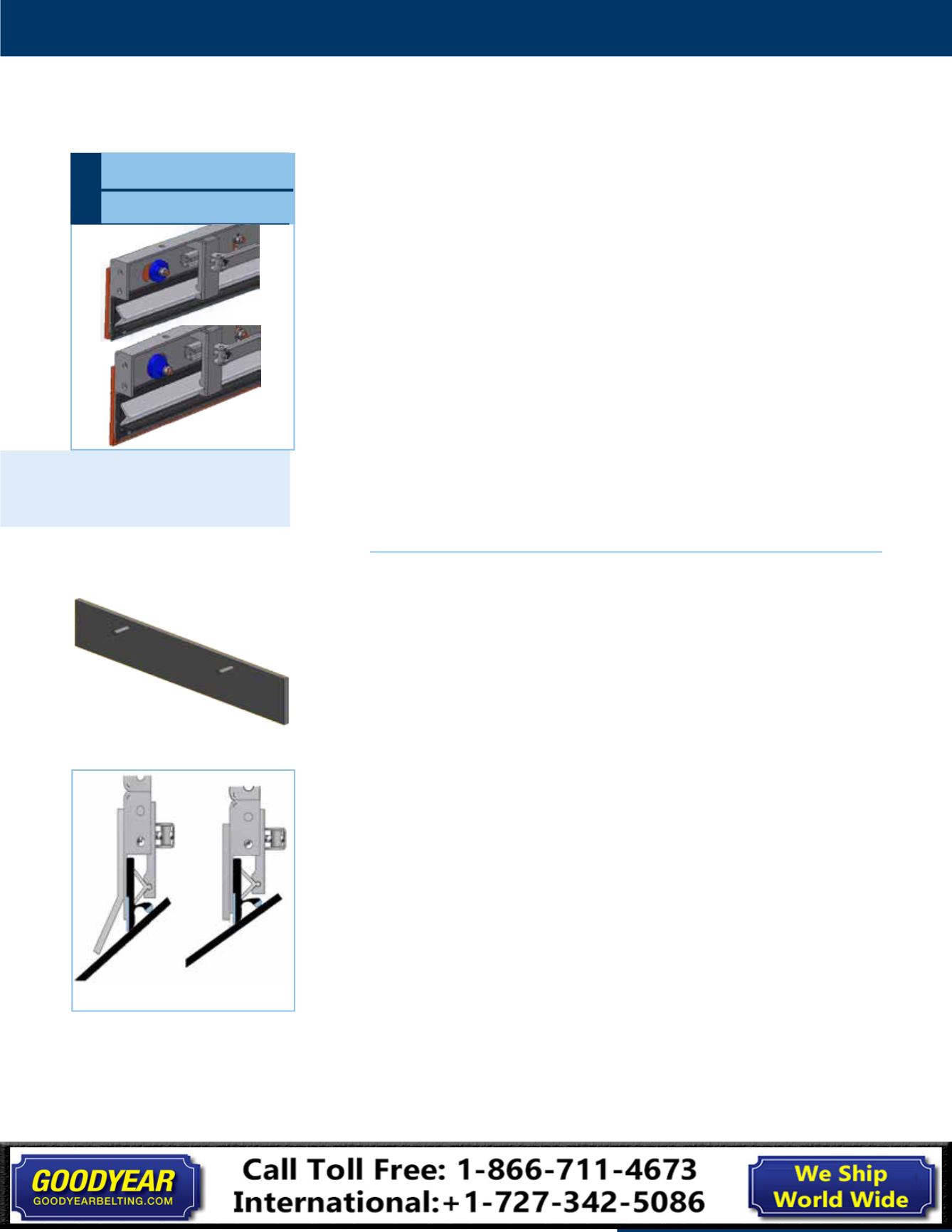

The MaxZone XN
Externally adjusted internal wear liner
Installed in the conventional internal position, the MaxZone XN eliminates concern
of material getting lodged between liner and chute wall. Economical cam upgrade
allows for easy and precise adjustments. External access means there is never a need
to enter the chute to remove liner or make adjustments.
ƒ ƒ Simple and quick wearliner replacements
ƒ ƒ No confined entry requirements
ƒ ƒ Adjust liner in three easy steps:
1. Loosen four liner bolts
2. Turn cams until desired height of belt is met
3. Re-tighten bolts
Xternal access:
Easy maintenance & replacement
Nternal wear liner:
Protects chute wall & sealing system
X
N
SkirtboardWear Liners
Simply turn the cams to adjust the
wear liner
The MaxZone Shield
Protective armor for your skirtboard. Our shields extend the life and efficiency of
your chute work and seal your system. Since frictional and abrasive properties vary
among bulk materials and operational requirements vary among belts, we offer
different liner types and materials to meet your needs.
ƒ ƒ Liners available in straight or deflector style
ƒ ƒ ½” standard liner thickness
ƒ ƒ Custom lengths and thicknesses available
ƒ ƒ Plates available with factory-welded mounting studs for ease of installation
MaxZone Wear Liner Material Options
ƒ ƒ AR 400
ƒ ƒ UHMW
ƒ ƒ Stainless
ƒ ƒ Ceramic
ƒ ƒ Chromium Carbide
