74

DQC116

877.963.4966 •

dixonvalve.com

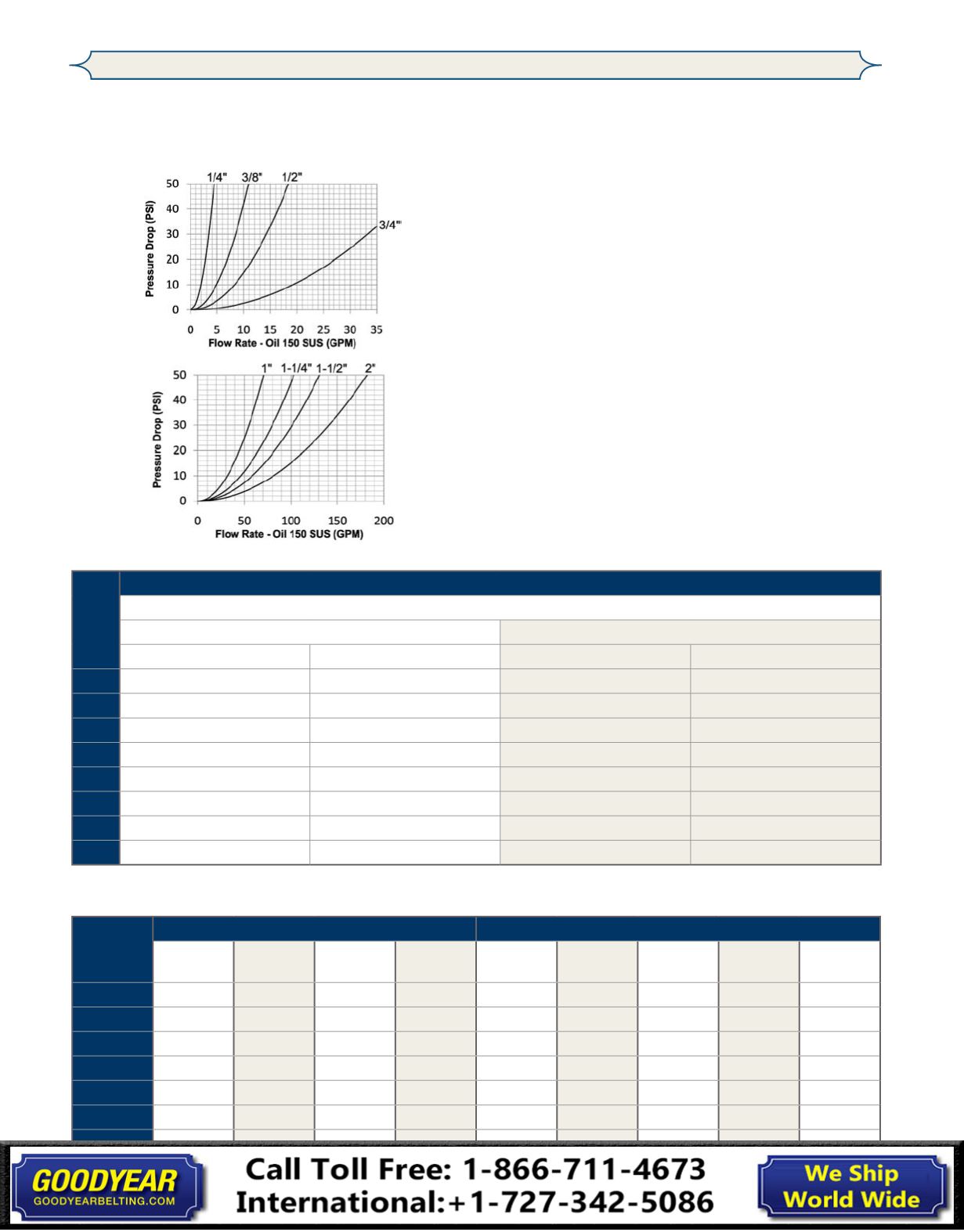

K-Series Hydraulic Couplings

Interchange Data:

Interchangeable to ISO7241 Series 'A'

Parker 6600-Series, Aeroquip/Eaton FD56 (5600)

Faster ANV, Hansen HA15000, Safeway S56-Series

Materials:

Machined components are manufactured using solid steel

bar stock.

Stainless steel balls, retaining rings, and springs maximize

corrosion resistance and extend service life.

Steel componentry is plated using ROHS Compliant

Trivalent Chrome.

Steel coupler sleeves are hardened to resist deformation

and maximize service life.

Steel nipples are hardened to provide heavy duty

performance and resist brinneling.

Nitrile (Buna-N) seals are standard, providing a temperature

range of

-40°F

to

+250°F

(

-40°C

to

+121°C

).

Couplers have a PTFE Anti-Extrusion ring.

Valve seals are crimped in place to maintain integrity during

excessive flow conditions and pressurized connection.

Seal Components:

Rated Pressure Chart:

Body

Size

K-Series ISO-A Interchange (Connected)

Steel Coupler/Plug

Maximum Working

Burst

PSI

Bar

PSI

Bar

1/4"

5,000

345

18,270

1,200

3/8"

4,000

275

18,270

1,200

1/2"

4,000

275

16,500

1,100

3/4"

4,000

275

14,800

1,000

1"

4,000

275

12,400

850

1-1/4"

3,000

200

12,600

850

1-1/2"

3,000

200

12,600

850

2"

1,450

100

5,800

400

Technical Specifications:

Body

Size

Interchange Standards

Functional Parameters

U.S.

Military

U.S.

Government

International

Standards

ANSI/NFPA

Standards

Locking Ball

Quantity

Air

Inclusion

Fluid

Loss

Vacuum

Inch HG

Flow

ΔP = 22 PSI

1/4"

-

-

ISO7241 'A' B93.113M-A 6

0.6cc

0.3cc

26.5 2.9 GPM

3/8"

-

-

ISO7241 'A' B93.113M-A 9

2.6cc

1.8cc

26.5

7 GPM

1/2"

-

-

ISO7241 'A' B93.113M-A 9

3.8cc

2.9cc

26.5

12 GPM

3/4"

-

-

ISO7241 'A' B93.113M-A 12

10.8cc

9.7cc

26.5

28 GPM

1"

-

-

ISO7241 'A' B93.113M-A 15

15.9cc

15.3cc

26.5

50 GPM

1-1/4"

-

-

ISO7241 'A' B93.113M-A 16

31.7cc

29.1cc

26.5

70 GPM

1-1/2"

-

-

ISO7241 'A' B93.113M-A 16

56.4cc

52.2cc

26.5

90 GPM

2"

-

-

ISO7241 'A' B93.113M-A 15

N/A

N/A

26.5 120 GPM

Please contact Dixon™ for 316 Stainless working pressures
