148

DQC116

877.963.4966 •

dixonvalve.com

E-Series Hydraulic Couplings

Interchange Data:

Straight-Through Pressure-Wash Interchange

Parker ST-Series, Foster FST-Series, Tomco Series-ST,

Hansen ST-Series

Materials:

Machined components are manufactured using solid steel,

brass, or 303 stainless steel bar stock.

Stainless steel balls, retaining rings, and springs maximize

corrosion resistance and extend service life.

Steel componentry is plated using ROHS Compliant

Trivalent Chrome.

1¼" to 2" brass couplers have steel sleeves as standard to

maximize service life, hardened to resist deformation.

Steel nipples are hardened to provide heavy duty

performance.

Nitrile (Buna-N) seals are standard, providing a temperature

range of

-40°F

to

+250°F

(

-40°C

to

+121°C

).

Seal Components:

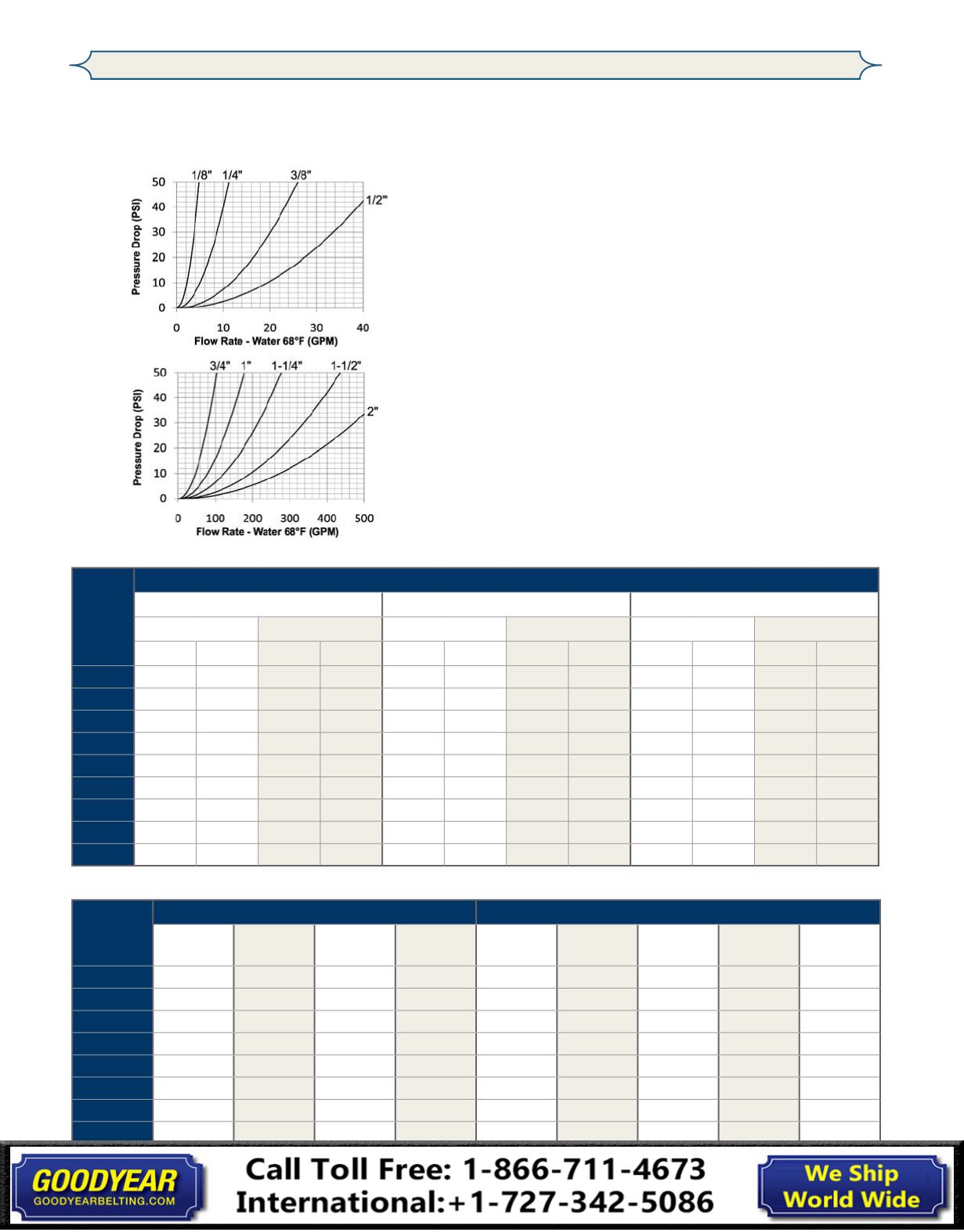

Technical Specifications:

Body

Size

Interchange Standards

Functional Parameters

U.S.

Military

U.S.

Government

International

Standards

ANSI/NFPA

Standards

Locking Ball

Quantity

Air

Inclusion

Fluid

Loss

Vacuum

Inch HG

Flow

ΔP = 15 PSI

1/8"

-

-

-

-

6

N/A

N/A

N/R 3 GPM

1/4"

-

-

-

-

6

N/A

N/A

N/R 6 GPM

3/8"

-

-

-

-

8

N/A

N/A

N/R 14 GPM

1/2"

-

-

-

-

8

N/A

N/A

N/R 24 GPM

3/4"

-

-

-

-

8

N/A

N/A

N/R 58 GPM

1"

-

-

-

-

8

N/A

N/A

N/R 100 GPM

1-1/4"

-

-

-

-

8

N/A

N/A

N/R 150 GPM

1-1/2"

-

-

-

-

8

N/A

N/A

N/R 250 GPM

2"

-

-

-

-

8

N/A

N/A

N/R 350 GPM

Rated Pressure Chart:

Body

Size

E-Series Straight-Through Interchange (Connected)

Brass Coupler/Steel Plug

Brass Coupler/Plug

303 SS Coupler/Plug

Max. Working

Burst

Max. Working

Burst

Max. Working

Burst

PSI

Bar

PSI

Bar

PSI

Bar

PSI

Bar

PSI

Bar

PSI

Bar

1/8"

2,600 179 10,400 717 2,500 172 10,000 689 4,200 290 16,800 1,158

1/4"

5,500 379 22,000 1,517 5,200 359 20,800 1,434 6,700 462 26,800 1,848

3/8"

3,500 241 14,000 966 2,700 186 10,800 745 5,500 379 22,000 1,517

1/2"

2,700 186 10,800 745 2,200 152 8,800 607 3,000 207 12,000 827

3/4"

2,700 186 10,800 745 1,700 117 6,800 469 3,000 207 12,000 827

1"

2,000 138 8,000 552 1,200 83 4,800 331 1,700 117 6,800 469

1-1/4"

2,000 138 8,000 552 1,700 117 6,800 469 2,000 138 8,000 552

1-1/2"

2,000 138 8,000 552 1,400 97 5,600 386 2,000 138 8,000 552

2"

2,000 138 8,000 552 1,400 97 5,600 386 2,000 138 8,000 552
