146

DQC116

877.963.4966 •

dixonvalve.com

H-BOP Series Hydraulic Couplings

Interchange Data:

Eaton/Hansen HKFR-Series, DNP HNV-BOP Series

Interchangeable to ISO7241 Series B

Materials:

Machined components are manufactured using solid steel or

316 stainless steel bar stock.

Stainless steel balls, retaining rings, and springs maximize

corrosion resistance and extend service life.

Steel componentry is plated using ROHS Compliant

Trivalent Chrome.

Steel coupler sleeves are hardened to resist deformation

and maximize service life.

Steel nipples are hardened to provide heavy duty

performance and resist brinneling.

Red powder coated coupler sleeve and nipple hex for easy

BOP service identification

Locking sleeve is standard

Blow-out Prevention (BOP) couplings contain severe service

FKM seals

PTFE Anti-Extrusion ring protects main coupling body seal

from dynamic impulse pressure damage

Coupler has redundant O-ring sealing system

Valve seals are crimped in place to maintain integrity during

excessive flow conditions and pressurized connection

Seal Components:

BOP couplings have been fire tested and Lloyd's certified to 700°C (1300°F) in accordance with API 16D. Certificate

available upon request.

Use H-Series dust caps and dust plugs found on pages 67 and 68.

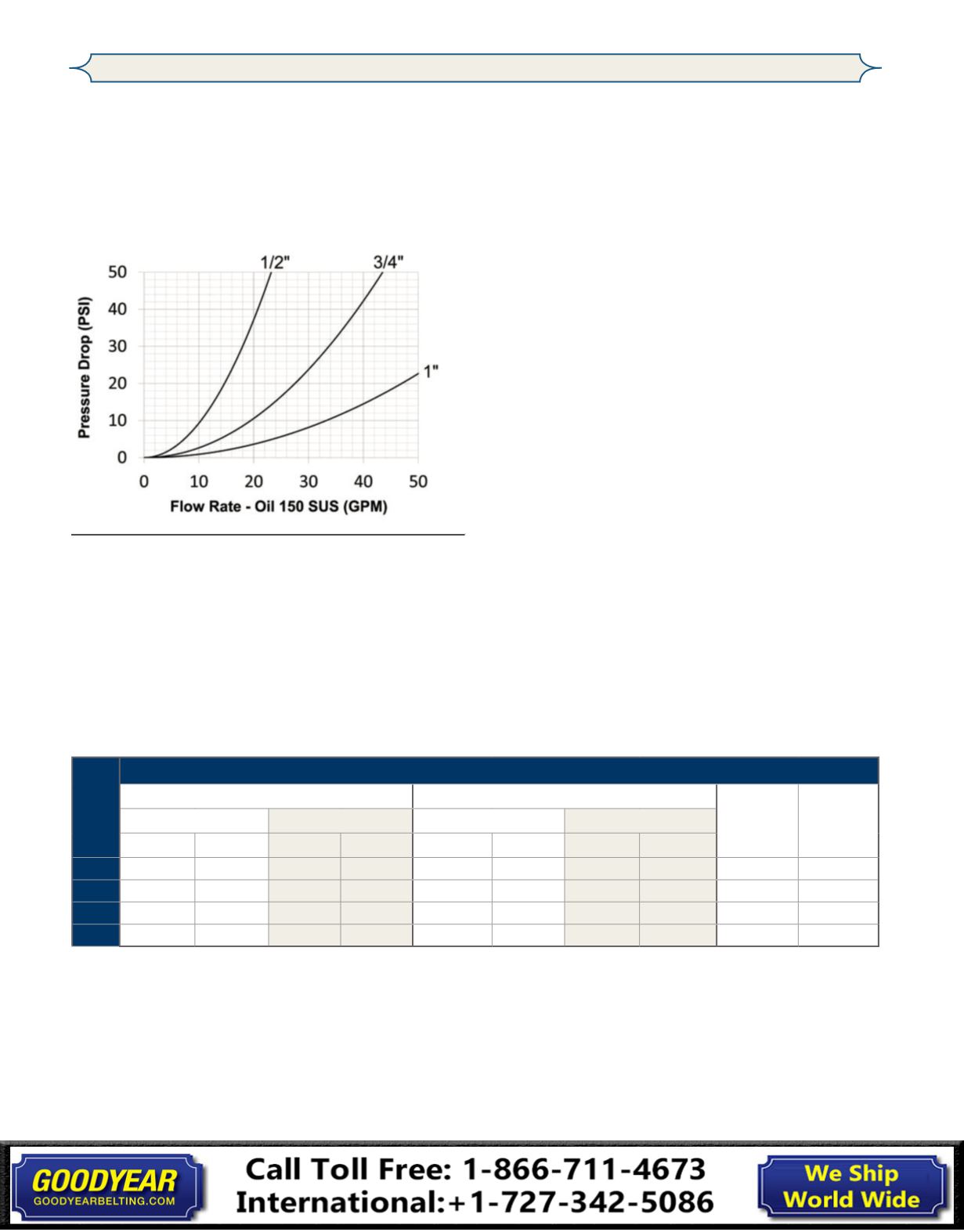

Rated Pressure Chart:

Body

Size

H-BOP-Series Blowout Prevention Safety Interchange

Steel Coupler/Plug

316 SS Coupler/Plug

Lloyd's Test

Pressure

Flow

ΔP = 22 PSI

Maximum Working

Burst

Maximum Working

Burst

PSI

Bar

PSI

Bar

PSI

Bar

PSI

Bar

3/8"

5,000

345 16,500 1,150

5,000

345

21,500 1,450

5,000 12 GPM

1/2"

5,000

345 16,000 1,100

5,000

345

22,000 1,500

5,000 15 GPM

3/4"

5,000

345 16,500 1,150

5,000

345

21,500 1,450

5,000 29 GPM

1"

5,000

345 16,000 1,100

5,000

345

15,000 1,000

5,000 50 GPM
