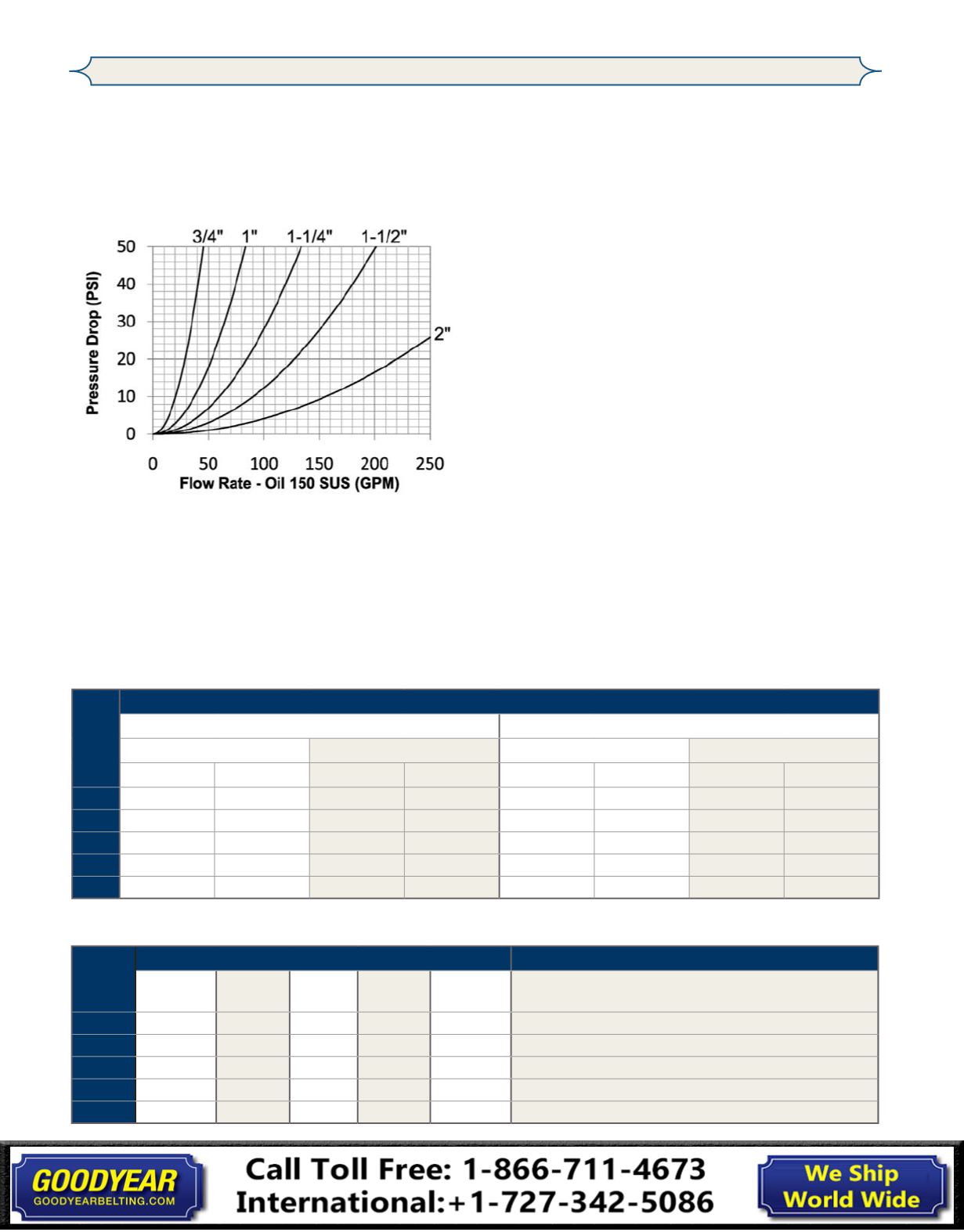

144

DQC116

877.963.4966 •

dixonvalve.com

WS-BOP Series Hydraulic Couplings

Interchange Data:

Snap-Tite 75-Series, DNP VFF-HD BOP Series

Materials:

Machined components are manufactured using solid steel or

316 stainless steel bar stock.

Stainless steel retaining rings, and springs maximize

corrosion resistance and extend service life.

Steel componentry is plated using ROHS Compliant Zinc

Nickel.

Rugged high-strength steel wing nut for threaded connect

and disconnect operation.

316 stainless steel nipple connection-threads are coated to

prevent galling during connection/disconnection.

Red powder coated coupler wing-nut and external nipple

O-ring for easy BOP service identification.

Blow-out Prevention (BOP) couplings contain severe service

FKM seals

PTFE Anti-Extrusion ring protects main coupling valve seal

from dynamic impulse pressure damage

Main valve seal is "housed" to improve seal integrity during

pressurized connection/disconnection

Seal Components:

Rated Pressure Chart:

Body

Size

WS-BOP Series High Pressure Wingstyle Interchange (Connected)

Steel Coupler/Plug

316 SS Coupler/Plug

Maximum Working

Burst

Maximum Working

Burst

PSI

Bar

PSI

Bar

PSI

Bar

PSI

Bar

3/4"

5,000

345

32,800

2,200

5,000

345

20,000

1,400

1"

5,000

345

25,100

1,700

5,000

345

20,000

1,400

1-1/4"

5,000

345

25,100

1,700

5,000

345

15,000

1,000

1-1/2"

5,000

345

20,000

1,400

5,000

345

15,000

1,000

2"

5,000

345

15,000

1,000

5,000

345

15,000

1,000

Technical Specifications:

Body

Size

Functional Parameters

Lloyd's Test Pressure

Locking

Mechanism

Air

Inclusion

Fluid

Loss

Vacuum

Inch HG

Flow

ΔP = 30 PSI

PSI

3/4"

Threaded 10cc

10cc

27.4 35 GPM

5,000

1"

Threaded 23cc

15cc

27.4 65 GPM

5,000

1-1/4"

Threaded 50cc

30cc

27.4 105 GPM

5,000

1-1/2"

Threaded 100cc

60cc

27.4 160 GPM

5,000

2"

Threaded 200cc 135cc

27.4 270 GPM

5,000

BOP couplings have been fire tested and Lloyd's certified to 700°C (1300°F) in accordance with API 16D. Certificate

available upon request.

Use WS dust caps and dust plugs found on page 132.
