142

DQC116

877.963.4966 •

dixonvalve.com

VEP-BOP Series Hydraulic Couplings

Interchange Data:

Stucchi VEP/VEP-HD Series, DNP FSI-BOP Series

Materials:

Machined components are manufactured using solid steel

bar stock

Stainless steel retaining rings and springs maximize

corrosion resistance and extend service life

Steel components are plated using ROHS Compliant Zinc

Nickel

Red powder coated components and external O-rings for

easy BOP service identification

Seal Components:

Blow-out Prevention (BOP) coupling critical seals are

severe service FKM

PTFE Anti-Extrusion ring protects main coupling valve seal

from dynamic impulse pressure damage

VEP-BOP Series Interchange

Body

Size

Pressure Rating

Burst Pressure

Max. Pressure

Connect

Max. Pressure

Disconnect

Rated Flow

ΔP=21.75psi

ISO Working Max. Impulse Connected

Coupler

Plug

PSI

MPa PSI

MPa PSI

MPa PSI

MPa PSI

MPa PSI

MPa PSI

MPa GPM L/min

3/8"

5,500 38 8,000 55 22,000 152 18,000 124 20,000 138 4,500 31 4,500 31 10.5 40

1/2"

5,500 38 8,000 55 22,000 152 18,000 124 20,000 138 4,500 31 4,500 31 17.5 66

3/4"

5,500 38 8,000 55 22,000 152 18,000 124 20,000 138 4,500 31 4,500 31 22.7 85

1"

5,500 38 7,500 52 22,000 152 14,500 100 20,000 138 3,625 25 3,625 25 32.5 123

1-1/4"

5,000 35 7,000 48 20,000 138 14,500 100 16,000 110 3,625 25 3,625 25 46.4 174

1-1/2"

5,000 31 5,800 40 18,000 124 12,000 83 14,500 100 3,000 21 3,000 21 95.0 360

Contact Dixon™ for availability of other end configurations

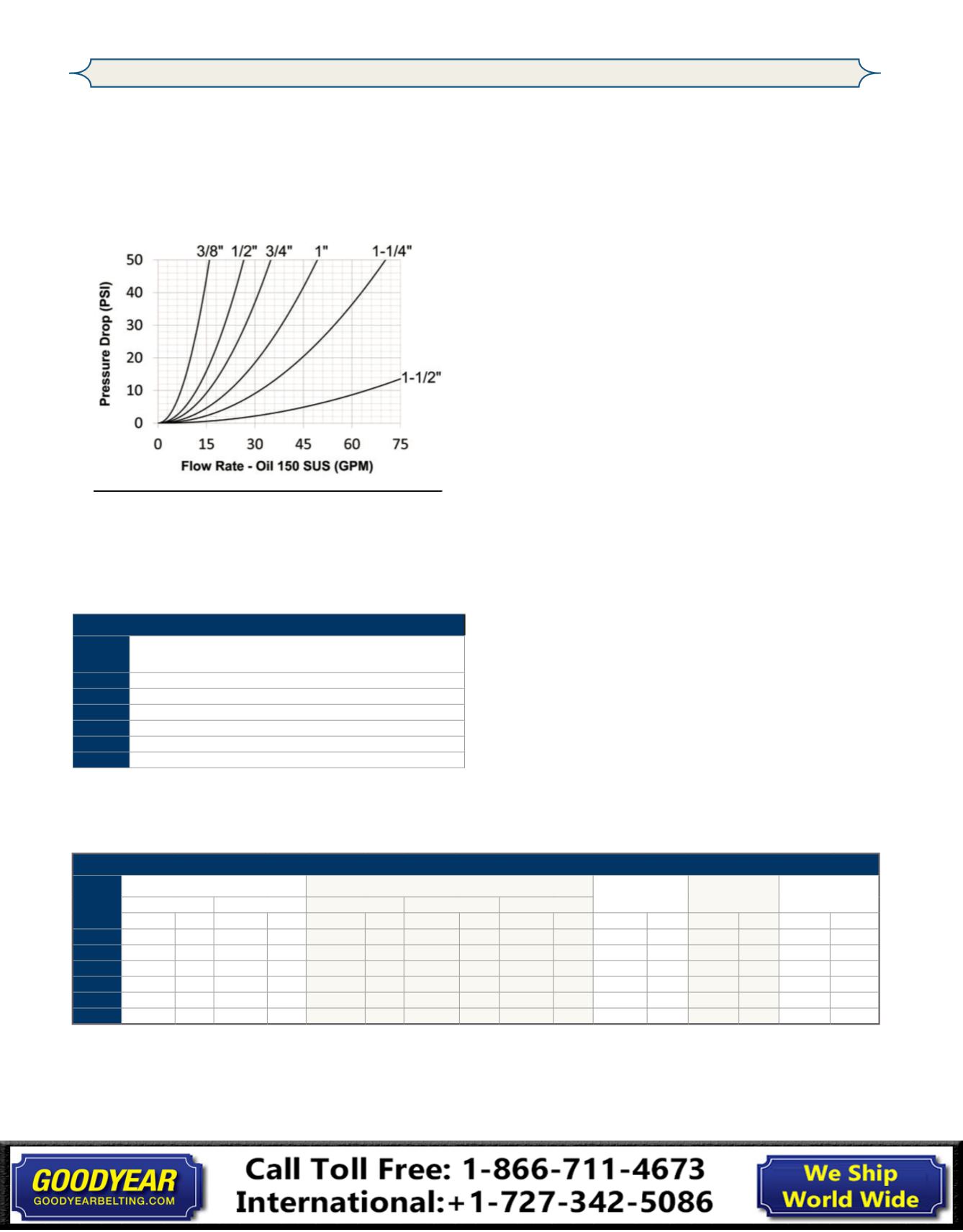

Rated Pressure Chart:

BOP couplings have been fire tested and Lloyd's certified to 700°C (1300°F) in accordance with API 16D. Certificate

available upon request.

Use VEP dust caps and dust plugs found on page 123.

Lloyd's Test Pressure

Body

Size

PSI

3/8"

5,000

1/2"

5,000

3/4"

5,000

1"

5,000

1-1/4"

5,000

1-1/2"

5,000
