HS-Series Hydraulic Couplings

Body

Size

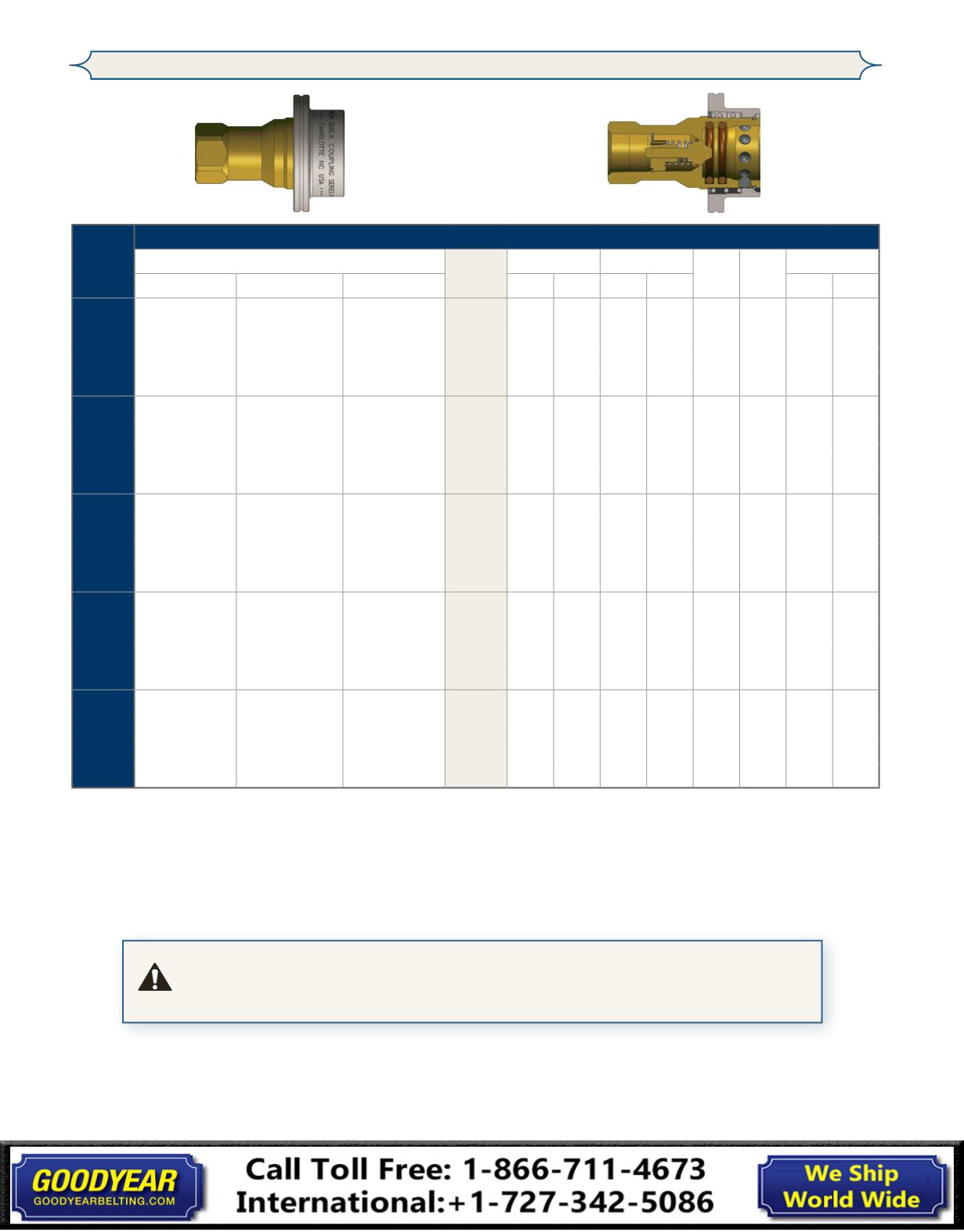

H-Series ISO-B Steam Interchange Coupler (Female Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/4"

2HSF2-B 1/4" - 18 NPTF brass

$44.92

2.26 57.4 1.42 36.1 3/4" 0.30 5 50

1/4"

2HSF2-S 1/4" - 18 NPTF 303 stainless

91.85

2.26 57.4 1.42 36.1 3/4" 0.30 5 50

1/4"

2HSBF2-B 1/4" - 19 BSPP brass

44.92

2.26 57.4 1.42 36.1 3/4" 0.30 5 50

1/4"

2HSBF2-S 1/4" - 19 BSPP 303 stainless

91.85

2.26 57.4 1.42 36.1 3/4" 0.30 5 50

3/8"

3HSF3-B 3/8" - 18 NPTF brass

48.39

2.51 63.8 1.73 43.9 7/8" 0.50 -

50

3/8"

3HSF3-S 3/8" - 18 NPTF 303 stainless

113.39

2.51 63.8 1.73 43.9 7/8" 0.50 -

50

3/8"

3HSBF3-B 3/8" - 19 BSPP brass

48.39

2.51 63.8 1.73 43.9 7/8" 0.50 -

50

3/8"

3HSBF3-S 3/8" - 19 BSPP 303 stainless

113.39

2.51 63.8 1.73 43.9 7/8" 0.50 -

50

1/2"

4HSF4-B 1/2" - 14 NPTF brass

67.52

2.86 72.6 2.29 58.2 1-1/16" 0.75 -

25

1/2"

4HSF4-S 1/2" - 14 NPTF 303 stainless

171.42

2.86 72.6 2.29 58.2 1-1/16" 0.75 -

25

1/2"

4HSBF4-B 1/2" - 14 BSPP brass

67.52

2.86 72.6 2.29 58.2 1-1/16" 0.75 -

25

1/2"

4HSBF4-S 1/2" - 14 BSPP 303 stainless

171.42

2.86 72.6 2.29 58.2 1-1/16" 0.75 -

25

3/4"

6HSF6-B 3/4" - 14 NPTF brass

105.71

3.55 90.2 2.61 66.3 1-5/16" 1.31 -

10

3/4"

6HSF6-S 3/4" - 14 NPTF 303 stainless

271.58

3.55 90.2 2.61 66.3 1-5/16" 1.31 -

10

3/4"

6HSBF6-B 3/4" - 14 BSPP brass

105.71

3.55 90.2 2.61 66.3 1-5/16" 1.31 -

10

3/4"

6HSBF6-S 3/4" - 14 BSPP 303 stainless

271.58

3.55 90.2 2.61 66.3 1-5/16" 1.31 -

10

1"

8HSF8-B 1" - 11 1/2 NPTF brass

171.63

4.13 104.9 2.98 75.7 1-5/8" 1.95 -

10

1"

8HSF8-S 1" - 11 1/2 NPTF 303 stainless

464.48

4.13 104.9 2.98 75.7 1-5/8" 1.95 -

10

1"

8HSBF8-B 1" - 11 BSPP brass

171.63

4.13 104.9 2.98 75.7 1-5/8" 1.95 -

10

1"

8HSBF8-S 1" - 11 BSPP 303 stainless

464.48

4.13 104.9 2.98 75.7 1-5/8" 1.95 -

10

Do not disconnect steam couplings while under pressure! Maximum operating temperature for steam

service couplings is 194°C (382°F), with an intermittent maximum temperature of 204°C (400°F). Be

sure to use safety chains, or equivalent means, to prevent the line from thrashing around in a case

where the coupling becomes disconnected.
