38
Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH
South Gate, CA
Eastern USA
Western USA
www.safehose.com
e-mail: indhose@parker.com
Air & Multipurpose
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Perm
Cplg
Rec
*
Std Pack
Qty
(ft)
Stock
Status
**
7201-752100
3/4 19.1
4 1.250 31.8 0.46 0.21 500 34.5
*
100
N
7201-1002050
1
25.4
4 1.551 39.4 0.64 0.29 500 34.5
*
50
N
7201-1002100
1
25.4
4 1.551 39.4 0.64 0.29 500 34.5
*
100
N
7201-1252K
1-1/4 31.8
4 1.812 46.1 0.79 0.36 350 24.1
*
150
Y
7201-1503K
1-1/2 38.1
4 2.125 54.0 1.04 0.47 350 24.1
*
150
Y
7201-2003K
2
50.8
6 2.656 67.5 1.53 0.69 350 24.1
*
150
Y
* Couplings:
Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.

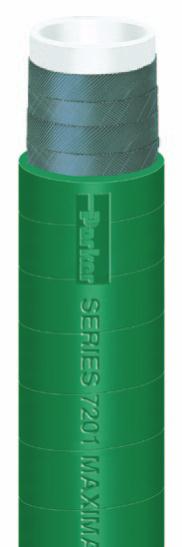

MAXIMAIRE
™
Heavy Duty Air Hose
Nonconductive
Series 7201
Series 7201 is a heavy duty hose designed to handle air, mild chemicals, oil and water. Te
hose is electrically nonconductive with a minimum resistance of one megaohm per inch at
1000 volts DC. Te nitrile/PVC cover is resistant to abrasion, oil and weathering.
NOTE:
Te user must determine if the hose is suitable for applications subject to electrical
hazard. Contact Parker for additional information.
Tube:
White chloroprene
Reinforcement:
Multiple textile plies
Cover:
Green nitrile/PVC; wrapped fnish
Temp. Range:
-20°F to +180°F (-29°C to +82°C)
Brand Method:
Embossed
Brand Example:
PARKER SERIES 7201 MAXIMAIRE HEAVY DUTY AIR HOSE (ID)
XXX PSI MAX WP USA
Design Factor:
4:1
Industrial Standards:
Electrically nonconductive with a minimum resistance of one megaohm
per inch at 1000 volts DC
Applications:
• Air, mild chemicals, oil, slurries, water
• Heavy duty air tools, compressors
• Construction, general industrial, mines, quarries
Vacuum:
Not recommended
Compare
to:
Boston Shock Safe, Mineforce; Veyance Ortac 400
Packaging:
Coils
WARNING!
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
