Air & Multipurpose
Series 7308
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Perm
Cplg
Rec
*
Std Pack
Qty
(ft)
Stock
Status
**
7308-1004
1
25.4
2 1.488 37.8 0.49 0.23 250 17.2
*
100
N
7308-1254
1-1/4 31.8
2 1.772 45.0 0.63 0.32 250 17.2
*
100
N
7308-1504
1-1/2 38.1
2 2.031 51.6 0.74 0.43 250 17.2
*
100
N
7308-2004
2
50.8
4 2.598 66.0 1.08 0.61 250 17.2
*
100
Y
7308-2504
2-1/2 63.5
4 3.051 77.5 1.20 0.74 250 17.2
*
100
N
7308-3004
3
76.2
4 3.528 89.6 1.35 0.88 250 17.2
*
100
N
* Couplings:
Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
Series 7308E
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Perm
Cplg
Rec
*
Std Pack
Qty
(ft)
Stock
Status
**
7308E-2000300
2
50.8
2 2.560 65.0 1.16 0.53 300 20.7
*
100
Y
* Couplings:
Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.

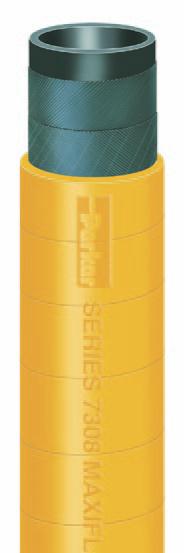

MAXIFLEX
®
Lightweight Air Hose
Series 7308 and Series 7308E
Series 7308/7308E is a fexible, lightweight, medium pressure hose designed to handle air,
mild chemicals and water. Te rugged cover is resistant to abrasion and weathering. Series
7308/7308E provides service for low to medium pressure air and water applications in
construction, general industrial, mines and quarries.
Tube:
Black SBR
Reinforcement:
Multiple textile plies
Cover:
Yellow SBR; wrapped fnish
Temp. Range:
-20°F to +212°F (-29°C to +100°C)
Brand Method:
Embossed
Brand Example:
PARKER SERIES (7308) (7308E) MAXIFLEX AIR HOSE XXX PSI WP
Design Factor:
3:1
Industry Standards:
None applicable
Applications:
• Air, water
•
Heavy duty air tools, compressors
• Construction, general industrial, mines, quarries
Vacuum:
Not recommended
Compare to:
Veyance Plicord Air 300
Packaging:
Coils
WARNING!
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
