Petroleum – Aircraft
GOLD LABEL®
Cold Temperature Aircraft Fueling Hose
API/IP 1529, NFPA 407
Series 7776CT

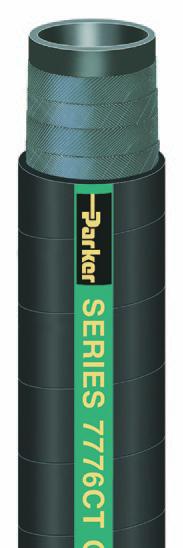

Series 7776CT is a low temperature, high pressure hose for top deck reel and platform type
aircraft fueling equipment. Te proprietary rubber compounds enable this hose to stay
fexible in extreme low temperatures, and the hose construction and materials provide a
path to conduct a static electrical charge to ground. Te premium nitrile tube minimizes
permeation and will not contaminate product going through the hose, and the nitrile cover
is resistant to abrasion, oil and weathering. Te hose is also suitable for defueling service at
low pressures (suction/vacuum rating to 8 in. Hg).
NOTES: • Refer to the table on pages 213-214 for fuel compatibility and service conditions.
• Refer to the Safety and Technical section of this catalog for safety, handling and
use information.
Tube: Black nitrile
Reinforcement: Multiple textile plies
Cover: Static conductive black nitrile; wrapped fnish
Temp. Range: -55°F to +180°F (-48°C to +82°C)
Brand Method: Side One: Embossed
Side Two: Gold text on green stripe
Brand Example: Side One: PARKER SERIES 7776CT (ID) API/IP 1529/2005 TYPE C-CT
GRADE 2 NFPA 407 (DATE CODE) WP 2068 KPa (300 PSI)
Side Two: PARKER GOLD LABEL® AIRCRAFT FUELING HOSE
Design Factor: 4:1
Industry Standards: API 1529:2005, Type C-CT, Grade 2; NFPA 407:2007
Applications: Aircraft fueling with avgas and jet fuel in cold temperature environments
Vacuum: To 8" Hg
Compare to: Contitech Elafex HDLT-C
Packaging: Coils (bulk hose available only to Parker Certifed Aircraft Fueling Hose
Assembly Fabricators)
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Drum/
Reel
OD
(in)
Drum/
Reel
OD
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Max
Lg
(ft)
Stock
Status
**
7776CT-1000 1 25.4 2 1.690 42.9 0.67 0.30 10.0 254.0 300 20.7 100 Y
7776CT-1250 1-1/4 31.8 2 1.940 49.3 0.81 0.37 13.0 330.2 300 20.7 100 Y
7776CT-1500 1-1/2 38.1 4 2.190 55.6 0.97 0.44 15.0 381.0 300 20.7 100 Y
7776CT-2000 2 50.8 4 2.710 68.8 1.23 0.56 20.0 508.0 300 20.7 100 Y
7776CT-2500 2-1/2 63.5 4 3.190 81.0 1.40 0.64 25.0 635.0 300 20.7 100 Y
7776CT-3000 3 76.2 4 3.690 93.7 1.70 0.77 30.0 762.0 300 20.7 100 Y
7776CT-4000 4 101.6 6 4.850 123.2 2.70 1.22 40.0 1016.0 300 20.7 100 N
Assemblies: Per customer specifcation; hydrostatically tested to 600 psi (41.4 bar) and certifed. Available only from Parker or Parker
Certifed Aircraft Fueling Hose Assembly Fabricators.
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
