Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH
South Gate, CA
Eastern USA
Western USA
www.safehose.com
e-mail: indhose@parker.com
Air & Multipurpose
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
SW560-2000
2 50.8 2 2.450 62.2 0.89 0.40 6.0 152.4 125 8.6
*
100 N
SW560-3000
3 76.2 2 3.480 88.4 1.48 0.67 12.0 304.8 125 8.6
*
100 Y
SW560-4000
4 101.6 2 4.480 113.8 1.99 0.90 16.0 406.4 100 6.9
*
100 Y
* Couplings:
Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.

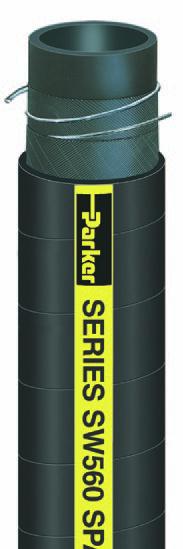

SPARTAN™
Hot Air Blower Hose
Series SW560
Series SW560 is a lightweight, medium pressure hot air blower hose designed for bulk
loading/unloading of dry materials in plants or transport vehicles. Te hose transfers
hot air from a compressor to the storage bin/cargo bay to propel bulk product. Te hose
construction incorporates a tube that features a temperature rating to 350°F (177°C) and
resists drying out. Te dual wire helix provides full suction capability, kink resistance,
fexibility for ease of handling and a path to conduct a static electrical charge to ground. Te
cover resists abrasion, heat and ozone.
NOTE:
For larger diameter hose, refer to Series EW360.
Tube:
Black EPDM
Reinforcement:
Multiple textile plies with dual wire helix
Cover:
Black EPDM; wrapped fnish
Temp. Range:
-40°F to +350°F (-40°C to +177°C)
Brand Method:
Black text on yellow stripe
Brand Example:
PARKER SERIES SW560 SPARTAN™ HOT AIR BLOWER HOSE
Design Factor:
4:1
Applications:
• Hot air blower systems
• In-plant transfer; delivery, loading/unloading
• General industrial, transportation
Vacuum:
Full
Packaging:
Coils
WARNINGS!
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
Do not use with cam and groove couplings.
!
