Air & Multipurpose
Medium Duty Multipurpose
Discharge Hose

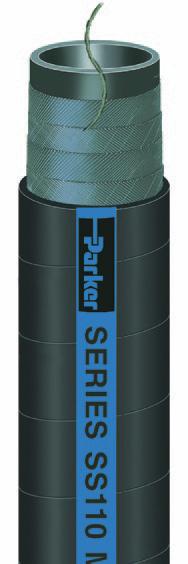

Series SS110
Series SS110 is a large diameter, medium duty discharge hose designed to handle air, mild
chemicals, oil, and water. Te hose construction incorporates a static wire to conduct an
electrical charge to ground, and the cover is resistant to abrasion and weathering.
NOTE:Do not use in hot, dry air applications or with refned fuel.
Tube: Black nitrile
Reinforcement: Multiple textile plies with static wire
Cover: Black SBR; perforated wrapped fnish
Temp. Range: -40°F to +180°F (-40°C to +82°C)
Brand Method: Black text on blue stripe
Brand Example: PARKER SERIES SS110 MULTIPURPOSE HOSE XXX PSI WP MADE IN
USA
Design Factor: 4:1
Applications: • Air, mild chemicals, oil, water
• General industrial, oil feld
Vacuum: Not recommended
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Perm
Cplg
Rec
*
Std Pack
Qty
(ft)
Stock
Status
**
SS110-1250 1-1/4 31.8 4 1.875 47.6 0.92 0.42 500 34.5 * 100 N
SS110-1500 1-1/2 38.1 4 2.188 55.6 1.09 0.49 500 34.5 * 100 N
SS110-2000 2 50.8 4 2.750 69.9 1.42 0.64 500 34.5 * 100 Y
SS110-2500 2-1/2 63.5 6 3.375 85.7 2.21 1.00 500 34.5 * 100 N
SS110-3000 3 76.2 6 3.875 98.4 2.55 1.16 500 34.5 * 100 N
SS110-4000 4 101.6 6 5.000 127.0 3.72 1.69 500 34.5 * 100 Y
SS110-6000 6 152.4 8 7.125 181.0 6.27 2.84 400 27.6 * 100 N
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
