Air & Multipurpose

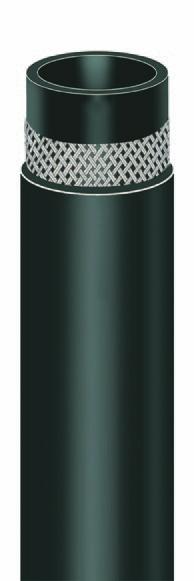

WHIPPET® 200
Multipurpose Hose
Series 7137
Series 7137 is a light duty, multipurpose hose designed to handle air, mild chemicals, oil
and water, and is ideal for air hose whip ends, industrial bench work and light duty air lines.
Te braided textile reinforcement provides kink resistance and superior coupling retention,
and the cover is resistant to oil and weathering.
Tube: Black nitrile
Reinforcement: One textile braid
Cover: Black chloroprene; smooth fnish
Temp. Range: -40°F to +180°F (-40°C to +82°C)
Brand Method: Not branded
Design Factor: 4:1
Industry Standards: None applicable
Applications: • Air, mild chemicals, oil, water
• Air tools, hose whips
• Assembly lines, general industrial
Vacuum: Not recommended
Compare to: Boston Easy Couple
Packaging: Reels
Part
Number
ID
(in)
ID
(mm)
Reinf
Braids
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7137-251 1/4 6.4 1 0.435 11.0 0.06 0.03 2.0 50.8 200 13.8 HY 700 Y
7137-311 5/16 7.9 1 0.531 13.5 0.09 0.04 2.5 63.5 200 13.8 HY 700 Y
7137-381 3/8 9.5 1 0.625 15.9 0.12 0.05 3.5 88.9 200 13.8 HY 700 Y
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
