Air & Multipurpose
Heavy Duty Multipurpose
Discharge Hose

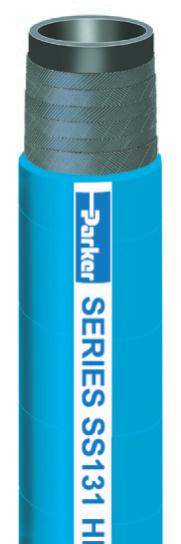

Series SS131
Series SS131 is a large diameter, heavy duty discharge hose designed to handle air, mild
chemicals, oil, and water. Te hose construction incorporates multiple plies of textile
reinforcement for extreme pressure capability and kink resistance, and the cover is resistant
to abrasion and weathering.
NOTE: Do not use in hot, dry air applications or with refned fuel.
Tube: Black nitrile
Reinforcement: Multiple textile plies
Cover: Blue synthetic rubber; perforated wrapped fnish
Temp. Range: -40°F to +180°F (-40°C to +82°C)
Brand Method: Blue text on white stripe
Brand Example: PARKER SERIES SS131 HEAVY DUTY MULTIPURPOSE DISCHARGE
HOSE XXX PSI WP MADE IN USA
Design Factor: 4:1
Applications: • Air, mild chemicals, oil, water
• Abrasion resistant, very high pressure discharge
• General industrial, oil feld
Vacuum: Not recommended
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Perm
Cplg
Rec
*
Std Pack
Qty
(ft)
Stock
Status
**
SS131-1500 1-1/2 38.1 6 2.375 60.3 1.53 0.69 1000 68.9 * 100 N
SS131-2000 2 50.8 6 3.000 76.2 2.06 0.93 1000 68.9 * 100 N
SS131-3000 3 76.2 6 4.125 104.8 3.27 1.48 800 55.2 * 100 N
SS131-4000 4 101.6 6 5.188 131.8 4.64 2.10 800 55.2 * 100 N
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
