Air & Multipurpose
ARCTIC EDGE™
Low Temperature Multipurpose Hose
Series 7102

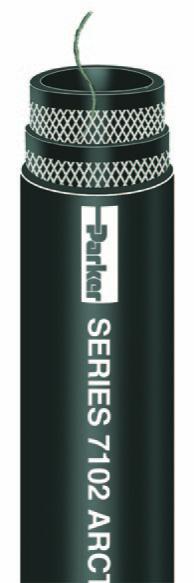

Series 7102 is a low temperature, multipurpose hose designed to handle air, mild chemicals,
water, oil and refned fuels such as biodiesel (to B20 in dedicated service), diesel, ethanol
and gasoline. Te hose construction incorporates a static wire as a path to conduct an
electrical charge to ground, and the multiple plies of textile reinforcement provide fexibility
and kink resistance to -70°F (-54°C). Te cover is resistant to oil and weathering, and
incorporates a longitudinal solid blue stripe for color-coded identifcation.
NOTES: • Refer to the table on pages 213-214 for fuel compatibility and service conditions.
• Do not use for fuel dispensing or service applications requiring API, NFPA, UL,
ULC or any other agency approval or listing.
Tube: Black nitrile
Reinforcement: Multiple textile plies with static wire
Cover: Black chloroprene; smooth fnish
Temp. Range: -70°F to +212°F (-57°C to +100°C)
Brand Method: White ink; solid blue stripe on reverse
Brand Example: PARKER SERIES 7102 ARCTIC EDGE™ (-70°F) LOW TEMP (ID)
300 PSI MAX WP MADE IN USA (DATE CODE)
Design Factor: 4:1
Industry Standards: None applicable
Applications: • Air, mild chemicals, oil, water; biodiesel (to B20 in dedicated service),
diesel, ethanol, gasoline
• Cold weather, refrigerated applications
• Agriculture, construction, foundries, general industrial
Vacuum: Not recommended
Compare to: Thermoid Glacier Multipurpose; Veyance Arctic Ortac
Packaging: Reels
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7102-38304 3/8 9.5 4 0.750 19.1 0.21 0.10 3.8 96.5 300 20.7 HY 650 N
7102-50304 1/2 12.7 4 0.906 23.0 0.28 0.13 5.0 127.0 300 20.7 7661 500 N
7102-75304 3/4 19.1 4 1.156 29.4 0.37 0.17 6.0 152.4 300 20.7 HY 400 Y
7102-100304 1 25.4 4 1.458 37.0 0.54 0.24 8.0 203.2 300 20.7 HY 300 Y
7102-125304 1-1/4 31.8 4 1.810 46.0 0.83 0.38 9.0 228.6 300 20.7 HY 250 Y
7102-138304 1-3/8 34.9 4 1.925 48.9 0.89 0.40 9.5 241.3 300 20.7 * 200 N
7102-150304 1-1/2 38.1 4 2.031 51.6 0.92 0.42 10.0 254.0 300 20.7 43 200 Y
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
