Air & Multipurpose
DAY-FLO®
Multipurpose Hose

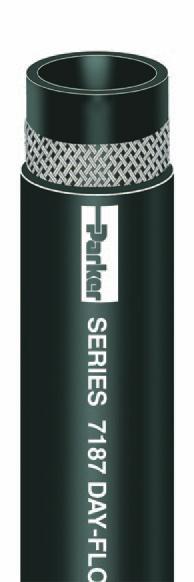

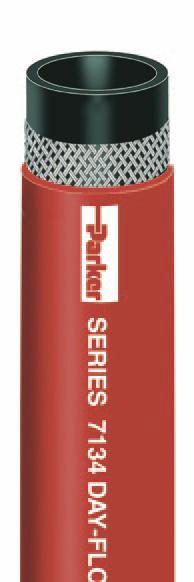

Series 7134 (Red) and 7187 (Black)
Series 7134/7187 is a versatile, multipurpose hose designed to handle air,
mild chemicals, oil, and water. Te braided textile reinforcement provides
kink resistance and superior coupling retention, and the cover is resistant to
oil and weathering.
NOTE: Do not use in hot, dry air applications or with refned fuel.
Tube: Black nitrile; ARPM Class A oil resistance
Reinforcement: One or multiple textile braids
Cover: 7134: Red chloroprene, smooth fnish
7187: Black chloroprene, smooth fnish
Temp. Range: -20°F to +212°F (-29°C to +100°C)
Brand Method: White ink
Brand Example: PARKER SERIES (7134) (7187) DAY-FLO® (ID)
XXX PSI MAX WP (DATE CODE)
Design Factor: 4:1
Industry Standards: ARPM Class A oil resistant tube
Applications: • Air, mild chemicals, oil, water
• Agriculture, construction, general industrial
Vacuum: Not recommended
Compare to: Boston Easy Couple
Packaging: Reels
Series 7134 (Red) and Series 7187 (Black)
Part
Number
7134 or
7187
ID
(in)
ID
(mm)
Reinf
Braids
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
7134
Stock
Status
**
7187
Stock
Status
**
-191 3/16 4.8 1 0.437 11.1 0.08 0.04 2.0 50.8 250 17.2 HY 700 Y Y
-251 1/4 6.4 1 0.500 12.7 0.09 0.04 2.5 63.5 250 17.2 HY 700 Y Y
-252 1/4 6.4 2 0.594 15.1 0.15 0.07 3.3 83.8 300 20.7 HY 700 Y Y
-311 5/16 7.9 1 0.625 15.9 0.14 0.06 3.0 76.2 250 17.2 HY 700 Y N
-381 3/8 9.5 1 0.687 17.4 0.17 0.08 3.5 88.9 250 17.2 HY 700 Y Y
-382 3/8 9.5 2 0.719 18.3 0.19 0.09 4.0 101.6 300 20.7 HY 700 Y Y
-501 1/2 12.7 1 0.812 20.6 0.21 0.10 4.5 114.3 250 17.2 HY 600 Y Y
-502*** 1/2 12.7 2 0.875 22.2 0.26 0.12 4.8 121.9 300 20.7 HY 600 n/a Y
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
*** Series 7187 only.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
