EW708-4000 4 101.6 4 5.500 139.7 5.90 2.68 24.0 609.6 200 13.8 100
EW708-4500 4-1/2 114.3 4 6.000 152.4 6.50 2.95 27.0 685.8 200 13.8 100
EW708-5000 5 127.0 4 6.500 165.1 7.40 3.36 30.0 762.0 200 13.8 100
EW708-5500 5-1/2 139.7 4 7.000 177.8 8.10 3.67 33.0 838.2 175 12.1 100
EW708-6000 6 152.4 4 7.625 193.7 10.10 4.58 36.0 914.4 175 12.1 100
EW708-6625 6-5/8 168.3 4 8.250 209.6 11.00 4.99 41.0 1041.4 150 10.3 50
EW708-8000 8 203.2 4 9.750 247.7 14.40 6.53 48.0 1219.2 150 10.3 50
EW708-8625 8-5/8 219.1 4 10.313 261.9 16.20 7.35 54.0 1371.6 150 10.3 50
EW708-10000 10 254.0 6 12.125 308.0 21.40 9.71 60.0 1524.0 150 10.3 50
EW708-10750 10-3/4 273.1 6 12.875 327.0 24.90 11.29 65.0 1651.0 150 10.3 50
EW708-12000 12 304.8 6 14.000 355.6 26.70 12.11 72.0 1828.8 150 10.3 50
EW708-12750 12-3/4 323.9 6 14.875 377.8 31.60 14.33 77.0 1955.8 150 10.3 50
EW708-13250 13-1/4 336.6 6 15.313 388.9 32.50 14.74 80.0 2032.0 150 10.3 50
EW708-14000 14 355.6 6 16.125 409.6 34.50 15.65 84.0 2133.6 150 10.3 50
EW708-15000 15 381.0 8 17.125 435.0 36.70 16.65 90.0 2286.0 150 10.3 50
EW708-16000 16 406.4 8 18.188 462.0 43.00 19.50 96.0 2438.4 150 10.3 50
EW708-18000 18 457.2 8 20.500 520.7 55.00 24.95 102.0 2590.8 150 10.3 50
Dredge Sand Suction Hose
3/8" Natural Rubber Tube
Series EW708
CustomMade Hose

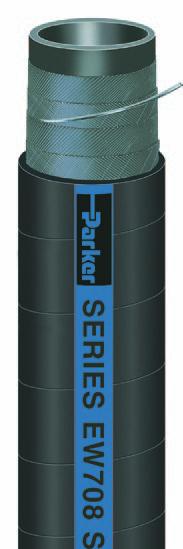

Series EW708 is designed specifcally for heavy duty suction and discharge service of
abrasive materials such as debris, sand and slurries in dredging applications. Te hose
provides a fexible connection between moveable suction lines and pump inlets on dredge
barges. Te 3/8" natural rubber tube provides abrasion resistance, the heavy wall provides
kink resistance and the SBR cover is resistant to abrasion, cuts, scufs and weathering.
NOTE: Other customized versions of this product are available. Contact Parker.
Tube: 3/8" Black natural rubber
Reinforcement: Multiple plies of tire cord with wire helix
Cover: Black SBR; wrapped fnish
Temp. Range: -40°F to +150°F (-40°C to +66°C)
Brand Method: Black text on blue stripe
Brand Example: PARKER SERIES EW708 SAND SUCTION HOSE
Design Factor: 4:1
Industry Standards: None applicable
Applications: • Light abrasive materials, sand, small gravel
• Dredging operations in coastal areas, gravel pits, lakes, rivers
Vacuum: Full
Packaging: Lengths or coils in bales, crates or slat packs
Couplings: Contact Parker
