Material Handling /Dredge
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Max
Lg
(ft)
ES908-4000 4 101.6 2 5.375 136.5 4.40 2.00 150 10.3 100
ES908-4500 4-1/2 114.3 2 5.813 147.6 4.90 2.22 150 10.3 100
ES908-5000 5 127.0 2 6.668 169.9 5.40 2.45 150 10.3 100
ES908-6000 6 152.4 4 7.625 193.7 7.40 3.36 150 10.3 100
ES908-6625 6-5/8 168.3 4 8.125 206.4 8.00 3.63 150 10.3 100
ES908-8000 8 203.2 4 9.625 244.5 9.90 4.49 150 10.3 50
ES908-8625 8-5/8 219.1 4 10.188 258.8 11.00 4.99 150 10.3 50
ES908-10000 10 254.0 6 11.813 300.0 14.00 6.35 150 10.3 50
ES908-10750 10-3/4 273.1 6 12.625 320.7 15.10 6.85 150 10.3 50
ES908-12000 12 304.8 6 13.813 350.8 16.80 7.62 150 10.3 50
ES908-12750 12-3/4 323.9 6 14.625 371.5 18.00 8.16 150 10.3 50
ES908-13250 13-1/4 336.6 6 15.125 384.2 19.00 8.62 150 10.3 50
ES908-14000 14 355.6 6 15.813 401.6 20.00 9.07 150 10.3 50
ES908-16000 16 406.4 8 18.000 457.2 26.00 11.79 150 10.3 50
ES908-18000 18 457.2 8 20.000 508.0 28.00 12.70 150 10.3 50

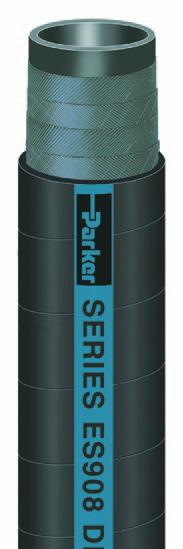

Heavy Duty Dredge Sleeve
1/2" Natural Rubber Tube
Series ES908
CustomMade Hose
Series ES908 is designed specifcally for extreme discharge service of abrasive materials
such as debris, sand and slurries in dredging applications. Te hose provides a fexible
connection between lengths of pipe linked from the dredge site to the shore, compensating
for the shifting and twisting of pontoons caused by water movement. Te 1/2" extra-thick
natural rubber tube provides superior abrasion resistance, the heavy wall provides kink
resistance and the SBR cover is resistant to abrasion, cuts, scufs and weathering.
NOTE:Other customized versions of this product are available. Contact Parker.
Tube: 1/2" Black natural rubber
Reinforcement: Multiple plies of tire cord
Cover: Black SBR; wrapped fnish
Temp. Range: -40°F to +150°F (-40°C to +66°C)
Brand Method: Black text on blue stripe
Brand Example: PARKER SERIES ES908 DREDGE SLEEVE
Design Factor: 4:1
Industry Standards: None applicable
Applications: • Extreme abrasive materials, large gravel, sand, shells
• Dredging operations in coastal areas, gravel pits, lakes, rivers
Vacuum: Not recommended
Packaging: Lengths or coils in bales, crates or slat packs
Couplings: Plain or enlarged ends only; contact Parker
