Material Handling /Dredge
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Max
Lg
(ft)
EW709-4000 4 101.6 4 5.813 147.6 6.90 3.13 27.0 685.8 200 13.8 100
EW709-4500 4-1/2 114.3 4 6.313 160.3 7.60 3.45 30.0 762.0 200 13.8 100
EW709-5000 5 127.0 4 6.813 173.0 8.60 3.90 33.0 838.2 200 13.8 100
EW709-5500 5-1/2 139.7 4 7.313 185.7 9.40 4.26 37.0 939.8 175 12.1 100
EW709-6000 6 152.4 4 7.813 198.4 11.50 5.22 40.0 1016.0 175 12.1 100
EW709-6625 6-5/8 168.3 4 8.500 215.9 12.50 5.67 46.0 1168.4 150 10.3 50
EW709-8000 8 203.2 4 9.906 251.6 16.20 7.35 53.0 1346.2 150 10.3 50
EW709-8625 8-5/8 219.1 4 10.625 269.9 18.20 8.26 60.0 1524.0 150 10.3 50
EW709-10000 10 254.0 6 12.313 312.7 23.70 10.75 67.0 1701.8 150 10.3 50
EW709-10750 10-3/4 273.1 6 13.000 330.2 27.30 12.38 72.0 1828.8 150 10.3 50
EW709-12000 12 304.8 6 14.313 363.5 29.40 13.34 80.0 2032.0 150 10.3 50
EW709-12750 12-3/4 323.9 6 15.125 384.2 34.50 15.65 86.0 2184.4 150 10.3 50
EW709-13250 13-1/4 336.6 6 15.625 396.9 35.50 16.10 89.0 2260.6 150 10.3 50
EW709-14000 14 355.6 6 16.313 414.3 37.60 17.06 93.0 2362.2 150 10.3 50
EW709-15000 15 381.0 8 17.313 439.7 40.00 18.14 100.0 2540.4 150 10.3 50
EW709-16000 16 406.4 8 18.500 469.9 46.50 21.09 107.0 2717.8 150 10.3 50
EW709-18000 18 457.2 8 20.500 520.7 62.00 28.12 120.0 3048.0 150 10.3 50

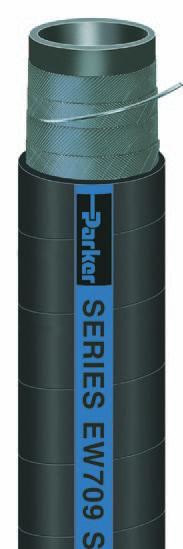

Dredge Sand Suction Hose
1/2" Natural Rubber Tube
Series EW709
CustomMade Hose
Series EW709 is designed specifcally for extreme heavy duty suction and discharge service
of abrasive materials such as debris, sand and slurries in dredging applications. Te hose
provides a fexible connection between moveable suction lines and pump inlets on dredge
barges. Te 1/2" extra-thick natural rubber tube provides abrasion resistance, the heavy
wall provides kink resistance and the SBR cover is resistant to abrasion, cuts, scufs and
weathering.
NOTE:Other customized versions of this product are available. Contact Parker.
Tube: 1/2" Black natural rubber
Reinforcement: Multiple plies of tire cord with wire helix
Cover: Black SBR; wrapped fnish
Temp. Range: -40°F to +150°F (-40°C to +66°C)
Brand Method: Black text on blue stripe
Brand Example: PARKER SERIES EW709 SAND SUCTION HOSE
Design Factor: 4:1
Industry Standards: None applicable
Applications: • Extreme abrasive materials, large gravel, sand, shells
• Dredging operations in coastal areas, gravel pits, lakes, rivers
Vacuum: Full
Packaging: Lengths or coils in bales, crates or slat packs
Couplings: Contact Parker
