Page 194 - Cat4800-Oct2011

153 Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH South Gate, CA
Eastern USA Western USA
www.safehose.com
e-mail: indhose@parker.com
Mate
rial Handling /Dredge
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Max
Lg
(ft)
ES907-4000 4 101.6 2 5.125 130.2 3.50 1.59 150 10.3 100
ES907-4500 4-1/2 114.3 2 5.625 142.9 3.90 1.77 150 10.3 100
ES907-5000 5 127.0 2 6.125 155.6 4.30 1.95 150 10.3 100
ES907-6000 6 152.4 4 7.313 185.7 6.10 2.77 150 10.3 100
ES907-6625 6-5/8 168.3 4 7.875 200.0 7.00 3.18 150 10.3 100
ES907-8000 8 203.2 4 9.313 236.5 8.30 3.76 150 10.3 50
ES907-8625 8-5/8 219.1 4 10.000 254.0 8.90 4.04 150 10.3 50
ES907-10000 10 254.0 6 11.625 295.3 12.00 5.44 150 10.3 50
ES907-10750 10-3/4 273.1 6 12.375 314.5 12.70 5.76 150 10.3 50
ES907-12000 12 304.8 6 13.625 346.1 14.40 6.53 150 10.3 50
ES907-12750 12-3/4 323.9 6 14.375 365.1 16.00 7.26 150 10.3 50
ES907-13250 13-1/4 336.6 6 14.875 377.8 17.00 7.71 150 10.3 50
ES907-14000 14 355.6 6 15.625 396.9 18.50 8.39 150 10.3 50
ES907-16000 16 406.4 8 17.875 454.0 23.00 10.43 150 10.3 50
ES907-18000 18 457.2 8 19.875 504.8 26.00 11.79 150 10.3 50

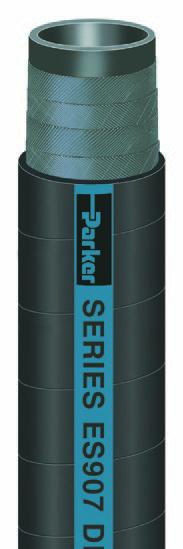

Dredge Sleeve
3/8" Natural Rubber Tube
Series ES907
CustomMade Hose
Series ES907 is designed specifcally for discharge service of abrasive materials such as
debris, sand and slurries in dredging applications. Te hose provides a fexible connection
between lengths of pipe linked from the dredge site to the shore, compensating for the
shifting and twisting of pontoons caused by water movement. Te 3/8" natural rubber tube
provides abrasion resistance, the heavy wall provides kink resistance and the SBR cover is
resistant to abrasion, cuts, scufs and weathering.
NOTE: Other customized versions of this product are available. Contact Parker.
Tube: 3/8" Black natural rubber
Reinforcement: Multiple plies of tire cord
Cover: Black SBR; wrapped fnish
Temp. Range: -40°F to +150°F (-40°C to +66°C)
Brand Method: Black text on blue stripe
Brand Example: PARKER SERIES ES907 DREDGE SLEEVE
Design Factor: 4:1
Industry Standards: None applicable
Applications: • Light abrasive materials, sand, small gravel
• Dredging operations in coastal areas, gravel pits, lakes, rivers
Vacuum: Not recommended
Packaging: Lengths or coils in bales, crates or slat packs
Couplings: Plain or enlarged ends only; contact Parker
