Material Handling /Dredge
Hot Air Blower Hose

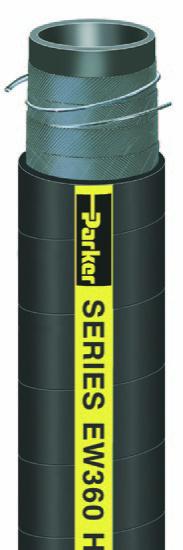

Series EW360
CustomMade Hose
Series EW360 is a heavy duty, high pressure hot air blower hose for bulk loading/unloading
of dry materials in plants or transport vehicles. Te hose transfers hot air from a compressor
to the storage bin/cargo bay to propel bulk product. Te hose construction incorporates
an EPDM tube that features a temperature rating to 300°F (149°C) and resists drying out.
Te wire helix provides full suction capability, kink resistance and a path to conduct a static
electrical charge to ground. Te EPDM cover resists abrasion, heat and ozone.
NOTES: • For smaller diameter hose, refer to Series SW360 and SW560.
• Other customized versions of this product are available. Contact Parker.
Tube: Black EPDM
Reinforcement: Multiple plies of tire cord with wire helix
Cover: Black EPDM; wrapped fnish
Temp. Range: -40°F to +300°F (-40°C to +149°C)
Brand Method: Black text on yellow stripe
Brand Example: PARKER SERIES EW360 HOT AIR BLOWER HOSE
Design Factor: 4:1
Industry Standards: None applicable
Applications: • Hot air blower systems
• In-plant transfer; delivery, loading/unloading
• Bulk transport, general industrial
Vacuum: Full
Packaging: Lengths or coils in bales, crates or slat packs
Couplings: Contact Parker
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Max
Lg
(ft)
EW360-6625 6-5/8 168.3 4 7.750 196.9 7.4 3.57 42.0 1066.8 100 7.0 100
EW360-8000 8 203.2 4 9.125 231.8 10.3 4.67 48.0 1219.2 100 7.0 50
EW360-8625 8-5/8 219.1 4 9.875 248.0 11.1 5.03 52.0 1320.8 100 7.0 50
EW360-10000 10 254.0 4 11.250 285.8 13.3 6.03 60.0 1524.0 100 7.0 50
EW360-10750 10-3/4 273.1 4 12.188 309.6 17.1 7.76 65.0 1651.0 75 5.2 50
EW360-12000 12 304.8 4 13.438 341.3 18.9 8.57 72.0 1828.8 75 5.2 50
EW360-12750 12-3/4 323.9 4 14.188 360.4 20.9 9.48 77.0 1955.8 50 3.4 50
EW360-14000 14 355.6 4 15.438 392.1 22.9 10.39 84.0 2133.6 50 3.4 50
