Corrugated Material Handling Hose
Suction / Vacuum
5/16" Natural Rubber Tube
Series EWC777
CustomMade Hose

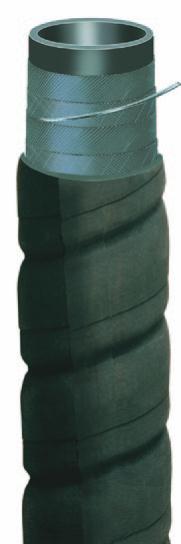

Series EWC777 is a fexible, versatile suction/vacuum hose for highly abrasive slurries.
Te hose can be cut-to-length, coupled, and installed in minutes at the job site with the
Parker Split-Lok aluminum fange coupling system. Te 5/16" natural rubber tube provides
abrasion resistance, and the wire helix provides full suction capability, kink resistance and a
path to conduct a static charge to ground. Te corrugated SBR cover provides fexibility and
is resistant to abrasion, cuts, scufs and weathering.
NOTE: Other customized versions of this product are available. Contact Parker.
Tube: 5/16" Black natural rubber
Reinforcement: Multiple plies of tire cord with wire helix
Cover: Black SBR; corrugated wrapped fnish
Temp. Range: -40°F to +150°F (-40°C to +66°C)
Brand Method: Not branded
Design Factor: 4:1
Industry Standards: None applicable
Applications: • Abrasive materials, debris, slurries, water
• Construction, general industrial
Vacuum: Full
Packaging: Lengths or coils in bales, crates or slat packs
Couplings: Parker Split-Lok aluminum fange couplings through 14" ID; built-in
couplings for larger sizes
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Max
Lg
(ft)
EWC777-4000 4 101.6 4 5.500 139.7 5.00 2.27 19.0 482.6 150 10.3 100
EWC777-5000 5 127.0 4 6.500 165.1 7.00 3.18 24.0 609.6 150 10.3 100
EWC777-6000 6 152.4 4 7.500 190.5 9.00 4.08 29.0 736.6 150 10.3 100
EWC777-8000 8 203.2 4 9.500 241.3 12.10 5.49 38.0 965.2 150 10.3 100
EWC777-10000 10 254.0 6 11.500 292.1 16.00 7.26 48.0 1219.2 150 10.3 50
EWC777-12000 12 304.8 6 13.750 349.3 23.00 10.43 58.0 1473.2 150 10.3 50
EWC777-14000 14 355.6 6 15.750 400.1 27.00 12.25 68.0 1727.2 100 6.9 50
EWC777-16000 16 406.4 6 17.750 450.9 31.10 14.11 78.0 1981.2 100 6.9 50
EWC777-18000 18 457.2 6 20.000 508.0 42.00 19.05 88.0 2235.2 100 6.9 50
EWC777-20000 20 508.0 6 22.000 558.8 48.00 21.77 100.0 2540.0 75 5.2 50
EWC777-22000 22 558.8 6 24.313 617.5 65.00 29.48 120.0 3048.0 75 5.2 50
EWC777-24000 24 609.6 6 26.313 668.3 69.00 31.30 130.0 3302.0 75 5.2 50
