Material Handling /Dredge
Exacta Pipe Material Handling Hose
Suction / Vacuum
1/4" Natural Rubber Tube
Series EW336
CustomMade Hose

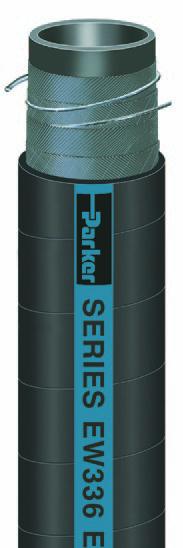

Series EW336 is a general purpose suction and discharge hose for highly abrasive materials.
Te 1/4" natural rubber tube provides excellent abrasion resistance, durability and
rebound, and the wire helix provides full suction capability, kink resistance and a path to
conduct a static charge to ground. Te SBR cover is resistant to abrasion, cuts, scufs and
weathering.
NOTES: • For higher working pressure hose, refer to Series SW336; for 3/8" tube, refer to
Series EW337; for 1/2" tube, refer to Series EW340.
• Other customized versions of this product are available. Contact Parker.
Tube: 1/4" Natural rubber
Reinforcement: Multiple plies of tire cord with wire helix
Cover: Black SBR; wrapped fnish
Temp. Range: -40°F to +150°F (-40°C to +66°C)
Brand Method: Black text on blue stripe
Brand Example: PARKER SERIES EW336 EXACTA PIPE MATERIAL SUCTION HOSE
Design Factor: 4:1
Industry Standards: None applicable
Applications: • Abrasive materials, debris, water
• Construction, general industrial
Vacuum: Full
Packaging: Lengths or coils in bales, crates or slat packs
Couplings: Contact Parker
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Max
Lg
(ft)
EW336-4000 4 101.6 4 5.125 130.2 4.50 2.04 24.0 609.6 100 6.9 100
EW336-5000 5 127.0 4 6.125 155.6 5.80 2.63 30.0 762.0 100 6.9 100
EW336-6000 6 152.4 4 7.125 181.0 7.10 3.22 36.0 914.4 100 6.9 100
EW336-6625 6-5/8 168.3 4 7.750 196.9 7.80 3.54 40.0 1016.0 100 6.9 100
EW336-8000 8 203.2 4 9.250 235.0 11.75 5.33 48.0 1219.2 100 6.9 50
EW336-8625 8-5/8 219.1 4 9.875 250.8 12.50 5.67 52.0 1320.8 100 6.9 50
EW336-10000 10 254.0 4 11.375 288.9 15.00 6.80 60.0 1524.0 100 6.9 50
EW336-10750 10-3/4 273.1 4 12.250 311.2 20.20 9.16 65.0 1651.0 100 6.9 50
EW336-12000 12 304.8 4 13.500 342.9 22.50 10.20 72.0 1828.8 100 6.9 50
EW336-12750 12-3/4 323.9 4 14.250 362.0 23.80 10.80 77.0 1955.8 100 6.9 50
EW336-14000 14 355.6 6 15.500 393.7 27.50 12.47 84.0 2133.6 100 6.9 50
