Material Handling /Dredge
Material Handling Hose
1/4" Natural Rubber Tube

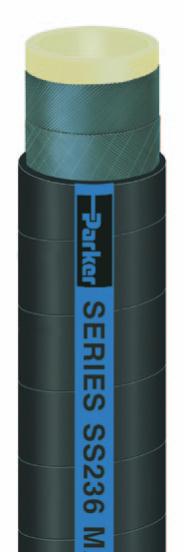

Series SS236
Series SS236 is a durable, rugged, slurry discharge hose for highly abrasive dry and wet
materials. Te 1/4" natural rubber tube provides abrasion resistance and the SBR cover is
resistant to abrasion, cuts, scufs and weathering.
Tube: 1/4" Tan natural rubber
Reinforcement: Multiple textile plies
Cover: Black SBR; wrapped fnish
Temp. Range: -40°F to +150°F (-40°C to +66°C)
Brand Method: Black text on blue stripe
Brand Example: PARKER SERIES SS236 MATERIAL HANDLING HOSE
1/4" TUBE XXX PSI WP MADE IN USA
Design Factor: 4:1
Industry Standards: None applicable
Applications: • Abrasive materials, debris, slurries, water
• Construction, general industrial, mining
Vacuum: Not recommended
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Std Pack
Qty
(ft)
Stock
Status
**
SS236-1500 1-1/2 38.1 2 2.313 58.7 1.21 0.55 150 10.3 100 N
SS236-2000 2 50.8 2 2.813 71.4 1.56 0.71 150 10.3 100 N
SS236-2500 2-1/2 63.5 2 3.313 84.1 1.90 0.86 150 10.3 100 N
SS236-3000 3 76.2 2 3.813 96.8 2.20 1.00 150 10.3 100 N
SS236-4000 4 101.6 2 4.813 122.2 2.85 1.29 100 6.9 100 N
SS236-4500 4-1/2 114.3 2 5.313 134.9 3.23 1.47 100 6.9 100 N
SS236-5000 5 127.0 2 5.813 147.6 3.54 1.61 100 6.9 100 N
SS236-6000 6 152.4 2 6.813 173.0 4.15 1.88 85 5.9 100 N
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
