Material Handling /Dredge
GOLIATH™
High Pressure Grout Placement Hose
SBR Tube

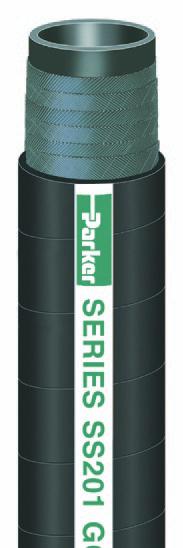

Series SS201
Series SS201 is a high pressure placement hose for cement, grout, plaster and shotcrete.
Te SBR tube provides abrasion resistance and the thick wall incorporates multiple plies
of reinforcement for contraction/elongation control and kink resistance. Te SBR cover is
resistant to abrasion, cuts, gouges, scufs and weathering.
Tube: Black SBR
Reinforcement: Multiple textile plies
Cover: Black SBR; wrapped fnish
Temp. Range: -40°F to +180°F (-40°C to +82°C)
Brand Method: Green text on white stripe
Brand Example: PARKER SERIES SS201 GOLIATH™ HIGH PRESSURE GROUT HOSE
XXX PSI WP MADE IN USA
Design Factor: 4:1
Industry Standards: None applicable
Applications: • Abrasive materials, cement, grout, plaster, shotcrete
• Construction, general industrial
Vacuum: Not recommended
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Std Pack
Qty
(ft)
Stock
Status
**
SS201-1500 1-1/2 38.1 4 2.375 60.3 1.35 0.61 1200 82.7 100 Y
SS201-2000 2 50.8 6 3.000 76.2 2.00 0.91 1200 82.7 100 N
SS201-2500 2-1/2 63.5 6 3.500 88.9 2.50 1.13 1000 68.9 100 N
SS201-3000 3 76.2 6 4.063 103.2 3.36 1.52 1000 68.9 100 N
SS201-4000 4 101.6 6 5.125 130.2 4.41 2.00 800 55.2 100 N
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
