Mate
rial Handling /Dredge
Concrete Placement Hose
Natural Rubber / SBR Blend Tube

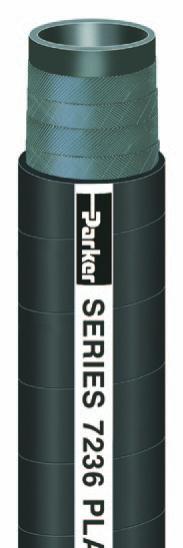

Series 7236
Series 7236 is a high pressure placement hose for dry and wet cement, concrete and plaster.
Te hose construction incorporates a thick static dissipating natural rubber/SBR blend tube
that provides abrasion resistance, and a heavy wall that provides kink resistance. Te SBR
cover is resistant to abrasion and weathering. Series 7236 is available in 200-foot continuous
lengths.
Tube: Black natural rubber/SBR blend; static dissipating
Reinforcement: Multiple textile plies
Cover: Black natural rubber/SBR blend; wrapped fnish
Temp. Range: -30°F to +150°F (-34°C to +66°C)
Brand Method: Black text on white stripe
Brand Example: PARKER SERIES 7236 PLASTER & CONCRETE HOSE 800 PSI MAX WP
MADE IN USA (LOT#)
Design Factor: 3:1
Industry Standards: None applicable
Applications: • Abrasive materials, dry and wet cement, concrete, plaster
• Construction, general industrial
Vacuum: Not recommended
Compare to: Veyance Allcrete Textile
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Std
Pack
Qty
(ft)
Stock
Status
**
7236-125800 1-1/4 31.8 4 1.882 47.8 0.78 0.35 9.0 228.6 800 55.2 100 N
7236-150800 1-1/2 38.1 4 2.212 56.2 1.01 0.46 12.0 304.8 800 55.2 100 N
7236-200800 2 50.8 4 2.762 70.2 1.38 0.63 24.0 609.6 800 55.2 100 N
7236-200800050 2 50.8 4 2.762 70.2 1.38 0.63 24.0 609.6 800 55.2 50 N
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
