131 Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH South Gate, CA
Eastern USA Western USA
www.safehose.com
e-mail: indhose@parker.com
Mate
rial Handling /Dredge
Dry Cement Hose
1/8" SBR Tube

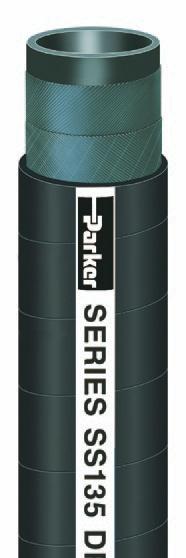

Series SS135
Series SS135 is a lightweight, low pressure discharge hose for dry abrasive materials such as
cement and powders. Te static dissipating 1/8" SBR tube provides abrasion resistance and
the SBR cover is resistant to abrasion, cuts, scufs and weathering.
Tube: 1/8" Black SBR; static dissipating
Reinforcement: Multiple textile plies
Cover: Black SBR; wrapped fnish
Temp. Range: -40°F to +180°F (-40°C to +83°C)
Brand Method: Black text on white stripe
Brand Example: PARKER SERIES SS135 DRY CEMENT DISCHARGE 65 PSI WP MADE
IN USA
Design Factor: 4:1
Industry Standards: None applicable
Applications: • Abrasive materials, dry cement, lime, powders, silica
• Bulk transport trucks
• Construction, general industrial
Vacuum: Not recommended
Compare to: Boston Lynx HD; Gates Dry Cement Delivery; Thermoid Transporter;
Veyance Black Softwall
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Std Pack
Qty
(ft)
Stock
Status
**
SS135-4000 4 101.6 2 4.500 114.3 1.49 0.68 65 4.5 100 Y
SS135-4500 4-1/2 114.3 2 5.000 127.0 1.71 0.78 65 4.5 100 Y
SS135-5000 5 127.0 2 5.500 139.7 1.90 0.86 65 4.5 100 N
SS135-6000 6 152.4 2 6.560 166.6 2.32 1.05 65 4.5 100 N
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
