Material Handling /Dredge
Premium Concrete Placement Hose
SBR Tube

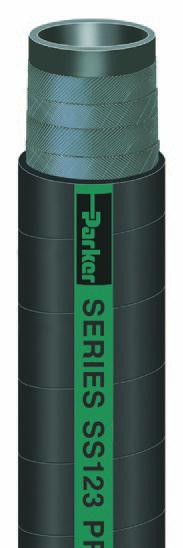

Series SS123
Series SS123 is a premium grade, high quality concrete placement hose for wet abrasive
materials. Te thick SBR tube provides abrasion resistance and the thick wall incorporates
multiple plies of reinforcement for kink resistance. Te SBR cover is resistant to abrasion,
cuts, gouges, scufs and weathering.
Tube:
Black SBR
Reinforcement:
Multiple textile plies
Cover:
Black SBR; wrapped fnish
Temp. Range:
-40°F to +180°F (-40°C to +82°C)
Brand Method:
Black text on green stripe
Brand Example:
PARKER SERIES SS123 PREMIUM CONCRETE PUMP HOSE XXX PSI
WP MADE IN USA
Design Factor:
4:1
Industry Standards:
None applicable
Applications:
• Wet abrasive materials, concrete
• Construction, general industrial
Vacuum:
Not recommended
Packaging:
Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Std Pack
Qty
(ft)
Stock
Status
**
SS123-1000
1
25.4
2
1.500 38.1 0.46 0.21
800
55.2
100
N
SS123-1250
1-1/4 31.8
2
1.750 44.5 0.57 0.26
800
55.2
100
Y
SS123-1500
1-1/2 38.1
2
2.188 55.6 0.99 0.45
800
55.2
100
N
SS123-2000
2
50.8
4
2.813 71.4 1.40 0.64
800
55.2
100
Y
SS123-2500
2-1/2 63.5
4
3.313 84.1 1.77 0.80
500
34.5
100
N
SS123-3000
3
76.2
6
4.063 103.2 2.80 1.27
500
34.5
100
Y
SS123-4000
4
101.6
6
5.063 128.6 4.02 1.82
500
34.5
100
Y
SS123-5000
5
127.0
6
6.250 158.8 4.93 2.24
500
34.5
100
Y
SS123-6000
6
152.4
6
7.313 185.7 6.18 2.80
500
34.5
100
Y
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING!
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
