Food & Beverage
HARVEST PLUS™
Food Suction Hose
Chlorobutyl Tube – Crush Resistant
FDA, PMO, USDA, 3-A
Series SM382

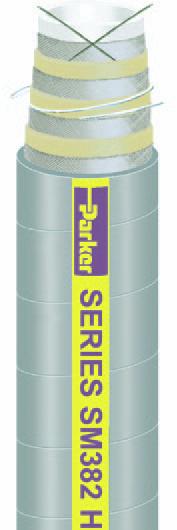

Series SM382 is a suction and discharge hose designed to handle non-fatty and non-oily
foods, liquids, sanitary products and potable water in a variety of transfer applications.
Te hose is manufactured using polished stainless steel mandrels for an ultra-smooth tube
that will not impart taste or odor, and is resistant to bacteria and microbes. Te lightweight
construction incorporates a unique dual monoflament helix that provides full suction
capability with superior crush and kink resistance — allowing the hose to return to its
original shape — and fexibility for ease of handling. Te dual static wires provide a path
to conduct an electrical charge to ground. Te EPDM cover is resistant to abrasion, mild
chemicals and ozone.
Tube: White chlorobutyl
Reinforcement: Multiple textile plies with dual monoflament helix and dual static wire
Cover: Gray EPDM; wrapped fnish
Temp. Range: -40°F to +225°F (-40°C to +107°C)
Brand Method: Purple text on yellow stripe
Brand Example: PARKER SERIES SM382 HARVEST PLUS+ CRUSH RESISTANT
FOOD/BEVERAGE/WINE SUCTION HOSE XXX PSI WP
MEETS FDA/USDA/3-A REQUIREMENTS (3-A LOGO) MADE IN USA
Design Factor: 4:1
Industry Standards: FDA, PMO, USDA, 3-A
Applications: • Non-fatty and non-oily foods, liquids, milk, potable water,
sanitary products
• In-plant and tank transfer
• Delivery, transport
Vacuum: Full (1-1/2" ID through 3" ID); 15" Hg (4" ID)
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
SM382-1500 1-1/2 38.1 4 2.250 57.2 1.16 0.53 5.0 127.0 250 17.2 * 100 Y
SM382-2000 2 50.8 4 2.781 70.6 1.53 0.69 7.0 177.8 250 17.2 * 100 Y
SM382-2500 2-1/2 63.5 4 3.281 83.3 1.93 0.88 13.0 330.2 250 17.2 * 100 Y
SM382-3000 3 76.2 4 3.781 96.0 2.27 1.03 21.0 533.4 250 17.2 * 100 Y
SM382-4000 4 101.6 4 4.781 121.4 3.03 1.37 40.0 1016.0 200 13.8 * 100 Y
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
