Food & Beverage
TITANFLEX®
Food Suction Hose
Chlorobutyl Tube
FDA, PMO, USDA, 3-A
Series SW630

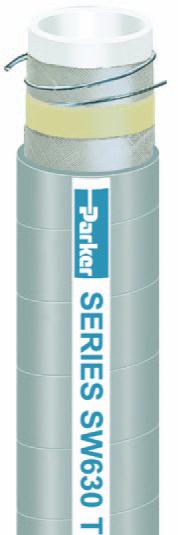

Series SW630 is a suction and discharge hose designed to handle non-fatty and non-oily
foods, liquids, sanitary products and potable water in a variety of transfer applications.
Te hose is manufactured using polished stainless steel mandrels for an ultra-smooth
tube that will not impart taste or odor, and is resistant to bacteria and microbes. Te tube
cleans easily with 10% alkali bath, hot water, or open-end low pressure steam to 15 psi (1.0
bar). Te lightweight construction incorporates a dual wire helix that provides full suction
capability, kink resistance and a path to conduct a static electrical charge to ground. Te
EPDM cover is resistant to abrasion, mild chemicals and ozone.
Tube: White chlorobutyl
Reinforcement: Multiple textile plies with dual wire helix
Cover: Gray EPDM; wrapped fnish
Temp. Range: -40°F to +225°F (-40°C to +107°C)
Brand Method: Blue text on white stripe
Brand Example: PARKER SERIES SW630 TITANFLEX® CHLOROBUTYL FOOD SUCTION
MEETS FDA/3-A/USDA/PMO REQUIREMENTS (3-A LOGO) 200 PSI WP
MADE IN USA
Design Factor: 4:1
Industry Standards: FDA, PMO, USDA, 3-A
Applications: • Non-fatty and non-oily foods, liquids, milk, potable water,
sanitary products
• In-plant and tank transfer
• Delivery, transport
Vacuum: Full
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
SW630-1500 1-1/2 38.1 2 2.125 54.0 0.98 0.44 4.5 114.3 200 13.8 * 100 Y
SW630-2000 2 50.8 2 2.641 67.1 1.37 0.62 6.0 152.4 200 13.8 * 100 Y
SW630-2500 2-1/2 63.5 2 3.156 80.2 1.77 0.80 7.5 190.5 200 13.8 * 100 N
SW630-3000 3 76.2 2 3.703 94.1 2.23 1.01 9.0 228.6 200 13.8 * 100 Y
SW630-4000 4 101.6 2 4.734 120.3 3.18 1.44 12.0 304.8 200 13.8 * 100 N
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
