Food & Beverage

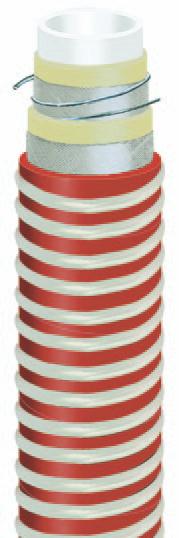

LIGHT-N-BRIGHT™
Food Suction Hose
Chlorobutyl Tube – External PVC Helix
FDA, PMO, USDA, 3-A
Series SP330
Series SP330 is a suction and discharge hose designed to handle non-fatty and non-oily
foods, liquids, sanitary products and potable water in a variety of transfer applications.
Te hose is manufactured using polished stainless steel mandrels for an ultra-smooth tube
that will not impart taste or odor, and is resistant to bacteria and microbes. Series SP330
features a lightweight construction with an external PVC rod helix for full suction capability,
superior fexibility and resistance to abrasion, crushing and kinking.
Tube: White chlorobutyl
Reinforcement: Multiple textile plies (with dual wire helix, 3" and 4" ID only)
Cover: Red synthetic rubber with external gray PVC helix
Temp. Range: -40°F to +200°F (-40°C to +93°C)
Brand Method: Not branded
Design Factor: 4:1
Industry Standards: FDA, PMO, USDA, 3-A
Applications: • Non-fatty and non-oily foods, liquids, milk, potable water,
sanitary products
• In-plant and tank transfer
• Delivery, transport
Vacuum: Full
Packaging: Coils
Couplings: Requires SP100 banding coils.
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
SP330-2000 2 50.8 2 3.000 76.2 1.39 0.63 2.0 50.8 100 7.0 * 100 Y
SP330-2500 2-1/2 63.5 2 3.500 88.9 1.73 0.78 3.0 76.2 100 7.0 * 100 Y
SP330-3000 3 76.2 2 4.000 101.6 2.48 1.12 4.0 101.6 100 7.0 * 100 Y
SP330-4000 4 101.6 2 5.000 127.0 3.53 1.60 6.0 152.4 100 7.0 * 100 N
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
