Food & Beverage
Food Suction Hose
Chlorobutyl Tube
FDA, PMO, USDA, 3-A

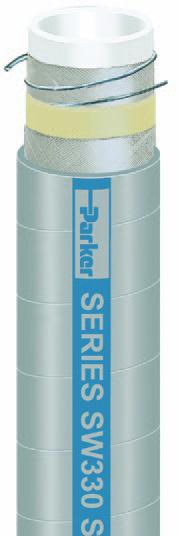

Series SW330
Series SW330 is a suction and discharge hose designed to handle non-fatty and non-oily
foods, liquids, sanitary products and potable water in a variety of food transfer applications.
Te hose is manufactured using polished stainless steel mandrels for an ultra-smooth tube
that will not impart taste or odor, and is resistant to bacteria and microbes. Te lightweight
construction incorporates a dual wire helix that provides full suction capability, kink
resistance and a path to conduct a static electrical charge to ground. Te EPDM cover is
resistant to abrasion, mild chemicals and ozone.
Tube: White chlorobutyl
Reinforcement: Multiple textile plies with dual wire helix
Cover: Gray EPDM; wrapped fnish
Temp. Range: -40°F to +225°F (-40°C to +107°C)
Brand Method: Gray text on blue stripe
Brand Example: PARKER SERIES SW330 SANITARY SUCTION & DISCHARGE HOSE
MEETS FDA/3-A/USDA/PMO REQUIREMENTS (3-A LOGO) 150 PSI WP
MADE IN USA
Design Factor: 4:1
Industry Standards: FDA, PMO, USDA, 3-A
Applications: • Non-fatty and non-oily foods, liquids, milk, potable water,
sanitary products
• In-plant and tank transfer
• Delivery, transport
Vacuum: Full
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
SW330-1000 1 25.4 2 1.625 41.3 0.75 0.34 4.0 101.6 150 10.3 * 100 N
SW330-1500 1-1/2 38.1 2 2.188 55.6 1.05 0.48 6.0 152.4 150 10.3 * 100 N
SW330-2000 2 50.8 2 2.625 66.7 1.45 0.66 7.0 177.8 150 10.3 * 100 Y
SW330-2500 2-1/2 63.5 2 3.250 82.6 1.92 0.87 8.0 203.2 150 10.3 * 100 N
SW330-3000 3 76.2 2 3.750 95.3 2.47 1.12 9.0 228.6 150 10.3 * 100 Y
SW330-4000 4 101.6 2 4.750 120.7 3.25 1.47 12.0 304.8 150 10.3 * 100 N
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
