Food & Beverage
Beverage and Potable Water
Discharge Hose
Nitrile Tube
FDA, PMO, USDA, 3-A

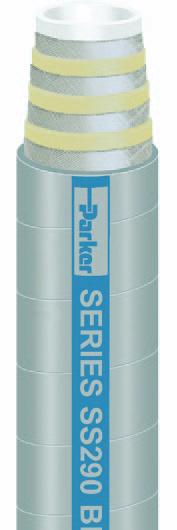

Series SS290
Series SS290 is a high pressure discharge hose designed to handle beverages, liquids and
potable water in a variety of transfer applications. Te hose is manufactured using polished
stainless steel mandrels for an ultra-smooth, bacteria-free tube that will not impart taste or
odor. Te tube cleans easily with 10% alkali bath, hot water, or open-end low pressure steam
to 15 psi (1.0 bar). Te lightweight construction provides fexibility for ease of handling. Te
natural rubber cover is resistant to abrasion, mild chemicals and ozone.
NOTE:Do not for use in applications where a static charge may develop unless externally
grounded.
Tube: White nitrile
Reinforcement: Multiple textile plies
Cover: Gray natural rubber; wrapped fnish
Temp. Range: -20°F to +225°F (-29°C to +107°C)
Brand Method: Gray text on blue stripe
Brand Example: PARKER SERIES SS290 BEVERAGE & POTABLE WATER HOSE
MEETS FDA/3-A/USDA/PMO REQUIREMENTS (3-A LOGO) 250 PSI WP
MADE IN USA
Design Factor: 4:1
Industry Standards: FDA, PMO, USDA, 3-A
Applications: • Beverages, liquids, milk, potable water
• In-plant and tank transfer
• Delivery, transport
Vacuum: Not recommended
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Perm
Cplg
Rec
*
Std Pack
Qty
(ft)
Stock
Status
**
SS290-1500 1-1/2 38.1 4 2.125 54.0 0.82 0.37 250 17.2 * 100 N
SS290-2000 2 50.8 4 2.625 66.7 1.10 0.50 250 17.2 * 100 N
SS290-2500 2-1/2 63.5 4 3.125 79.4 1.39 0.63 250 17.2 * 100 N
SS290-3000 3 76.2 4 3.625 92.1 1.64 0.74 250 17.2 * 100 N
SS290-4000 4 101.6 4 4.625 117.5 2.21 1.00 250 17.2 * 100 N
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
