Food & Beverage
Corrugated Food Suction Hose
Nitrile Tube
FDA, PMO, USDA, 3-A

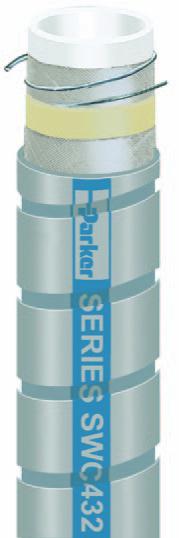

Series SWC432
Series SWC432 is an extremely fexible suction and discharge hose designed to handle
fatty and oily foods, liquids, sanitary products and potable water in a variety of transfer
applications. Te hose is manufactured using polished stainless steel mandrels for an
ultra-smooth, bacteria-free tube that will not impart taste or odor. Te tube cleans easily
with 10% alkali bath, hot water, or open-end low pressure steam to 15 psi (1.0 bar). Te
lightweight construction incorporates a dual wire helix that provides full suction capability,
minimal force-to-bend, superior kink resistance, fexibility for ease of handling, and a path
to conduct a static electrical charge to ground. Te nitrile cover is resistant to abrasion and
oil and features enhanced corrugations that allow easy, sanitary cleaning.
Tube: White nitrile
Reinforcement: Multiple textile plies with dual wire helix
Cover: Gray nitrile; enhanced corrugated wrapped fnish
Temp. Range: -20°F to +225°F (-29°C to +107°C)
Brand Method: Gray text on blue stripe
Brand Example: PARKER SERIES SWC432 FOOD SUCTION MEETS FDA/3-A/USDA/
PMO REQUIREMENTS (3-A LOGO) XXX PSI WP MADE IN USA
Design Factor: 4:1
Industry Standards: FDA, PMO, USDA, 3-A
Applications: • Fatty and oily foods, liquids, milk, potable water, sanitary products
• In-plant and tank transfer
• Delivery, transport
Vacuum: Full
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std Pack
Qty
(ft)
Stock
Status
**
SWC432-2000 2 50.8 2 2.594 65.9 1.33 0.60 5.0 127.0 200 13.8 * 100 Y
SWC432-3000 3 76.2 2 3.625 92.1 2.09 0.95 8.0 203.2 150 10.3 * 100 Y
SWC432-4000 4 101.6 2 4.688 119.1 3.11 1.41 10.0 254.0 100 6.9 * 100 N
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
