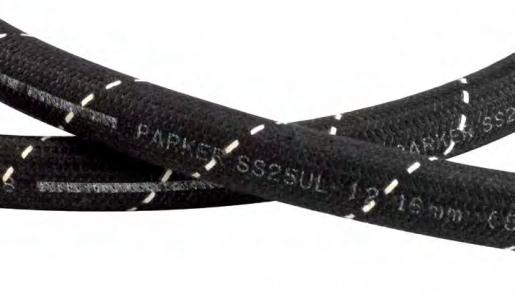

SS25UL
Part
Number Hose I.D.
Hose O.D.
Working
Pressure
Minimum
Bend Radius Weight
Field
Attachable Parkrimp
inch mm inch mm psi MPa inch mm lbs/ft kg/m 20/22 Series 26 Series
SS25UL-4 3/16 5 0.52 13,2 350 2,4 0.75 20 0.11 0,16
SS25UL-5 1/4 6,3 0.58 14,8 350 2,4 1 25 0.13 0,19
SS25UL-6 5/16 8 0.68 17,2 350 2,4 1-1/4 30 0.18 0,27
SS25UL-8 13/32 10 0.77 19,5 350 2,4 1-3/4 45 0.21 0,31
SS25UL-10 1/2 12,5 0.92 23,4 350 2,4 2-1/4 55 0.29 0,43
SS25UL-12 5/8 16 1.08 27,4 350 2,4 2-3/4 70 0.37 0,55
SS25UL
Transportation – Liquefed Petroleum Gas
AGA-AS / NZS 1869D / UL STANDARD 21
• Low-pressure service with liquefed petroleum gas
• UL Standard 21 certifcation
• Oil and LPG resistant synthetic fber cover
• Compatible with 26 Series Parkrimp style fttings
• Se
for Field Attachable Assembly Instructions.
• See
or Parkrimp Assembly Instructions.
• Temperature Range of other media listed in
Alternative /
Marine
Alternative/Marine Hose:
SS25UL
Alternative / Marine
Catalog 4400 US
A-52
Application:
Liquefed petroleum
gas (LPG).
Inner Tube:
Synthetic rubber.
Reinforcement:
One fber braid
and one stainless steel wire
braid.
Cover:
Fiber braid.
Temperature Range:
-40°F to
+250°F (-40°C to +121°C).
Fittings:
