SS23CG
Part
Number
Hose I.D.
Hose O.D.
Working
Pressure
Minimum
Bend Radius Weight
Parkrimp
inch mm inch mm psi
MPa inch mm lbs/ft kg/m 26 Series
SS23CG-6 5/16 8,0 0.68 17,2 425 3,0 4 100 0.16 0,24
•
SS23CG-8 13/32 10,0 0.77 19,5 425 3,0 4-1/2 115 0.17 0,25
•
SS23CG-10 1/2 12,5 0.92 23,4 425 3,0 5-1/2 140 0.28 0,42
•
SS23CG-12 5/8 15,9 1.05 26,8 425 3,0 6-1/2 165 0.30 0,45
•
SS23CG
Transportation – Compressed Natural Gas
and Liquefed Petroleum Gas
CGA TYPE III, ECE110 CLASS 1 / UL STANDARD 21 LPG
Application:
Liquefed
petroleum gas (LPG),
Compressed natural gas
(CNG).
Inner Tube:
Synthetic rubber.
Reinforcement:
One steel
braid.
Cover:
Synthetic rubber.
Temperature Range:
-40°F to
+250°F (-40°C to +121°C).
Fittings:
26 Series - pg. B-9.
FACTORY MADE HOSE ASSEMBLIES ONLY. Contact Hose Products Division for more information.
If you make or maintain LPG / CNG powered equipment, SS23CG
hose is your choice for gas permeation resistance and reliable performance.
SS23CG exceeds Canadian Gas Association specifcation CAN / CGA-8.1-M86
Type III which means it meets permeation requirements of 1,6 g/m
2
-day.
You can specify it with confdence – anywhere.
• Meets ECE R110/R67 specifcation
• Meets UL21, 588, 569 specifcations
• See
Section B
for Field Attachable Assembly Instructions.
• See
Section C
for Parkrimp Assembly Instructions.
• Temperature Range of other media listed in
Section E.

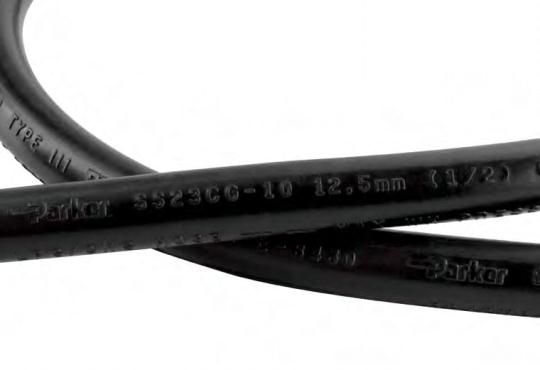

Embossed layline per industry standard
Catalog 4400 US
Alternative /Marine
Alternative/Marine Hose:
SS23CG
