221FR

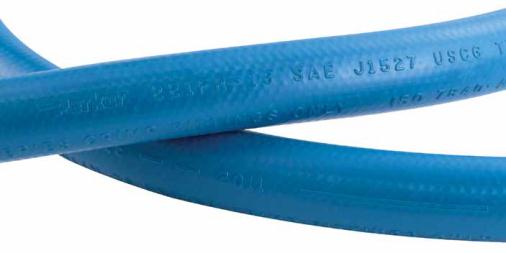

A fre-resistant hose for gasoline or diesel fuel systems on recreational or
commercial marine vessels.
• ISO 7840 and USCG approved
• Marine fuel and engine hose
221FR
Transportation – Marine Fuel and Engine Hose
SAE J1527 TYPE A CLASS I, USCG SAE J1942 /
ISO 7840 / USCG H, HF / GERMAN LLOYD / LLOYDS REGISTER / DNV / ABS
Part
Number Hose I.D.
Hose
O.D.
Working
Pressure
Minimum
Bend Radius Weight
Vacuum
Rating Parkrimp
Field
Attachable
inch mm inch mm psi MPa inch mm lbs/ft kg/m
inches
of Hg kPa 26 Series 20/22 Series
221FR-5 1/4 6,3 0.58 15 500 3,5 1 25 0.19 0,28 24 81
221FR-6 5/16 8 0.68 17 500 3,5 1-1/4 30 0.23 0,34 24 81
221FR-8 13/32 10 0.77 20 500 3,5 1-3/4 45 0.28 0,42 24 81
221FR-10 1/2 12,5 0.92 23 500 3,5 2-1/4 55 0.39 0,58 20 68
221FR-12 5/8 16 1.08 27 500 3,5 2-3/4 70 0.41 0,61 20 68
221FR-16 7/8 22 1.23 31 500 3,5 3-1/2 90 0.47 0,70 20 68
ISO 7840 with 26 Series fttings ONLY.
Hg
• Se
for Field Attachable Assembly Instructions.
• See
for Parkrimp Assembly Instructions.
• Temperature Range of other media listed in
Alternative /
Marine
Catalog 4400 US
Alternative / Marine
Alternative/Marine Hose:
221FR
A-53
Application:
Gasoline, ethanol
blends, diesel fuels, petroleum
base hydraulic fuid, and
lubricating oils.
Inner Tube:
Synthetic rubber.
Reinforcement:
One braid steel
wire.
Cover:
Synthetic rubber, blue,
MSHA accepted.
Temperature Range:
-4°F to
+212°F (-20°C to +100°C).
Fittings:
