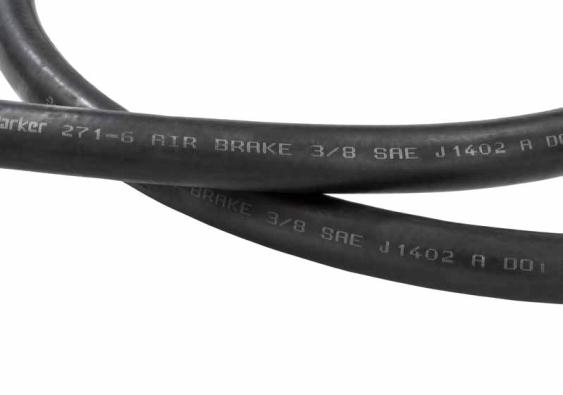

271 Air Brake
• See
page E-5 f
or charted effects temperature has on maximum working pressures of 201, 206, 213, and 266 hose.
• Se
e Section B
for Field Attachable Assembly Instructions.
• See
Section C
for Parkrimp Assembly Instructions.
• Temperature Range of other media listed in
Section E.
Application:
Air brake systems.
Inner Tube:
Synthetic rubber.
Reinforcement:
One or more
fber braid.
Cover:
Synthetic Rubber.
Temperature Range:
-50°F to
+212°F (-46°C to +100°C).
Fittings
:
25 Series - pg. B-5.
271
Transportation – Air Brake Hose
SAE J1402 A - AIR BRAKE
Part
Number
Hose I.D.
Hose O.D.
Working
Pressure
Minimum
Bend Radius
Weight
Parkrimp
inch mm inch mm psi
MPa inch mm lbs/ft kg/m 25 Series
271-6
3/8 10 0.75 19 225 1,6 1-3/4 45 0.20 0,30
•
271-8
1/2 12,5 0.88 22 225 1,6 2
50 0.26 0,39
•
