611HT
Part
Number Hose I.D. Hose O.D.
Working
Pressure
Minimum
Bend Radius Weight
Vacuum
Rating Parkrimp
inch mm inch mm psi
MPa inch mm lbs/ft kg/m
inches
of Hg kPa 26 Series
611HT-4 1/4 6,2 0.47 11,9 400 2,8 2 1/2 65 0.09 0,13 28 95
•
611HT-6 3/8 9,3 0.59 15,1 400 2,8 3 75 0.11 0,16 28 95
•
611HT-8 1/2 12,5 0.75 19,0 400 2,8 4 100 0.18 0,27 28 95
•
611HT-10 5/8 15,7 0.88 22,2 350 2,4 5 125 0.19 0,28 18 61
•
611HT-12 3/4 18,8 1.00 25,4 300 2,1 6 150 0.254 0,36 18 61
•

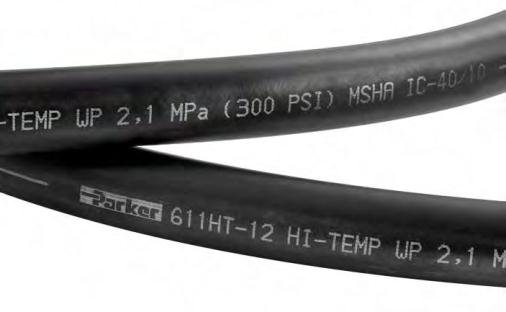

611HT
Transportation – Air Brake Hose
SAE J517 / 100R6 EN 854 TYPE R6
Application:
Petroleum base
hydraulic fuids and lubricating
oils, diesel fuels and antifreeze
solutions.
Inner Tube:
PKR
®
.
Reinforcement:
One fber braid.
Cover:
Synthetic rubber abra-
sion resistant, MSHA accepted.
Temperature Range:
-55°F to
+302°F (-48°C to +150°C).
Fittings:
26 Series - pg. B-9.
Hg
• Se
e Section B
for Field Attachable Assembly Instructions.
• See
Section C f
or Parkrimp Assembly Instructions.
• Temperature Range of other media listed in
Section E.
Catalog 4400 US
Transportation
Transportation Hose:
611HT
A-49
A
TRANSPORTATION
